Introduction

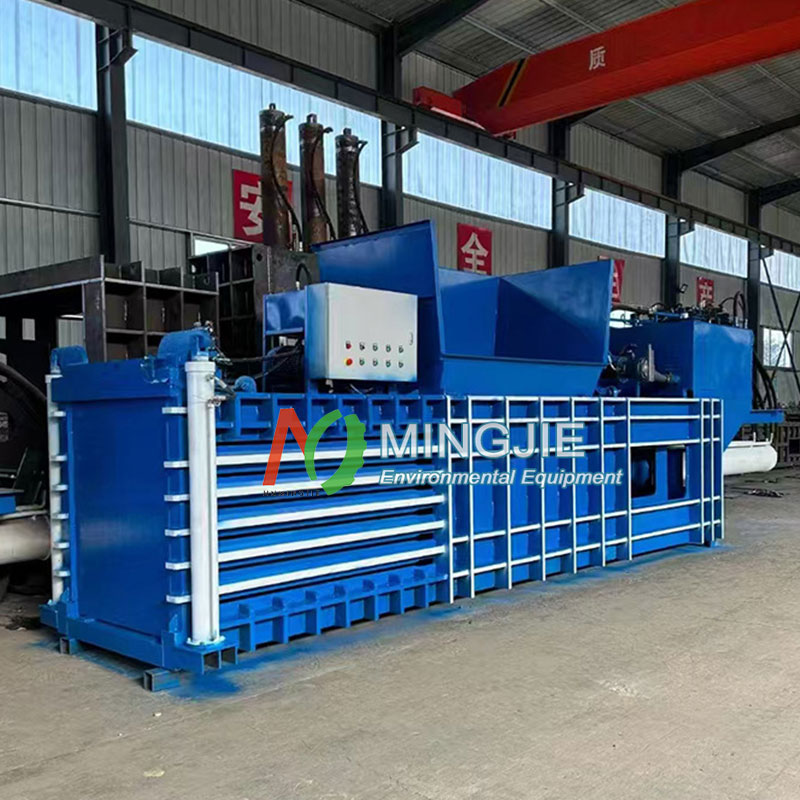

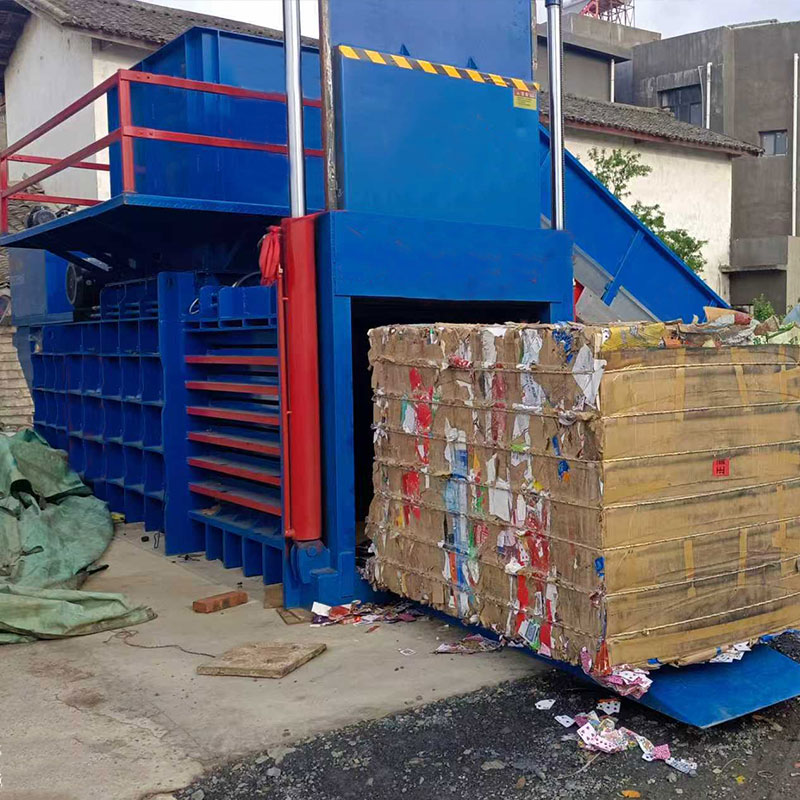

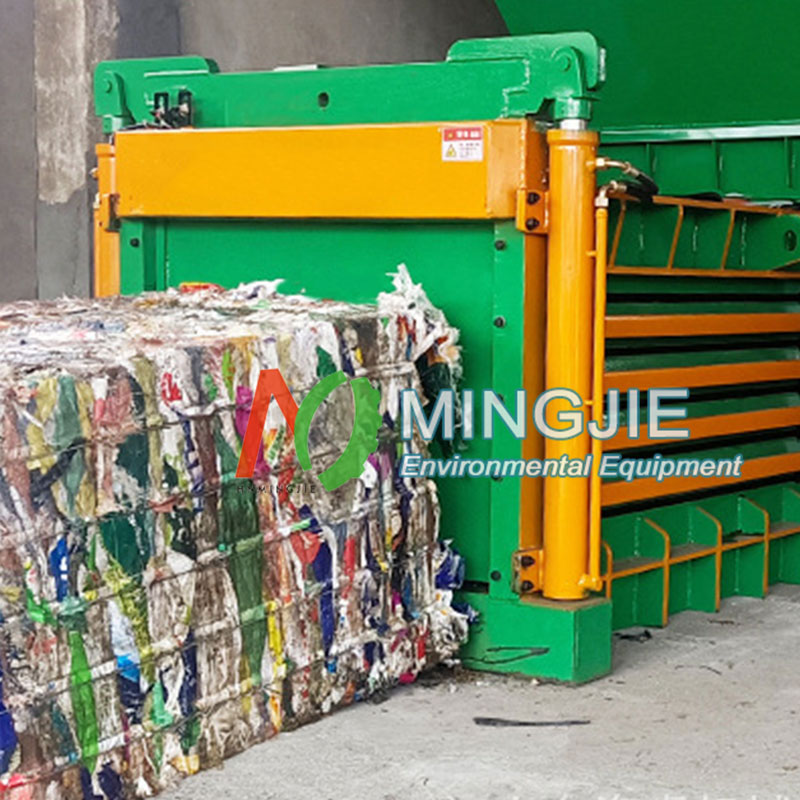

The horizontal baler machine with lifting door is a classic and common piece of equipment in the scrap recycling industry. Its key feature is the lift-door design. A motor drives a hydraulic pump, generating high-pressure oil. This drives the hydraulic cylinders, exerting tremendous pressure. The main push cylinder operates horizontally, pushing the material horizontally from the loading port to the baling box.

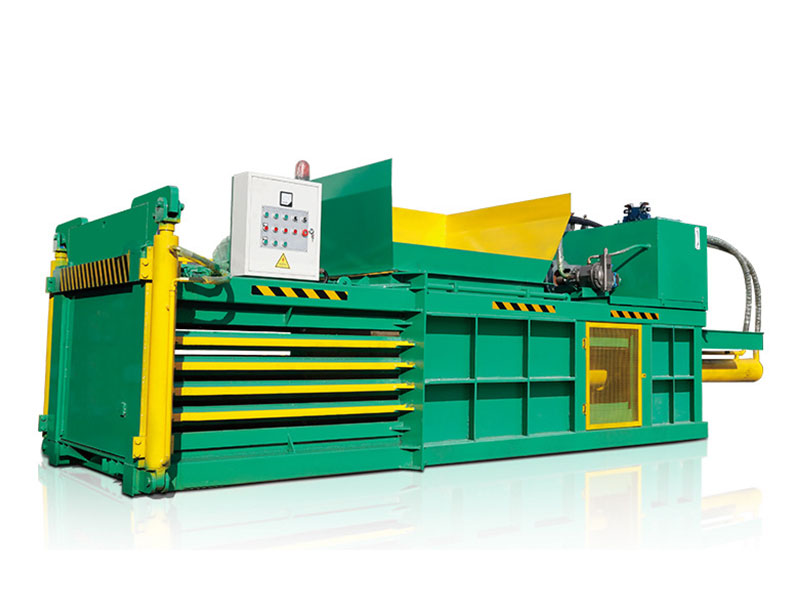

The lift-door horizontal baler primarily refers to a baler door that is driven by a hydraulic cylinder and flips upward to open. When closing, the door swings downward and is locked securely by a powerful locking mechanism. In contrast to the lift-door model, the door of the baler opens sideways.
Parameters
| Horizontal Baler Machine with Lifting Door | Model | Power | Cylinder Diameter | Machine Size | Packed Size | Oil Pump | Conveyor Belt |
| (mm) | (mm) | (mm) | (mm) | ||||
| MJH-60T | 18.5kw | 230 | 7200*2000*2400 | 1700*1100*850 | 80 | 5000 | |

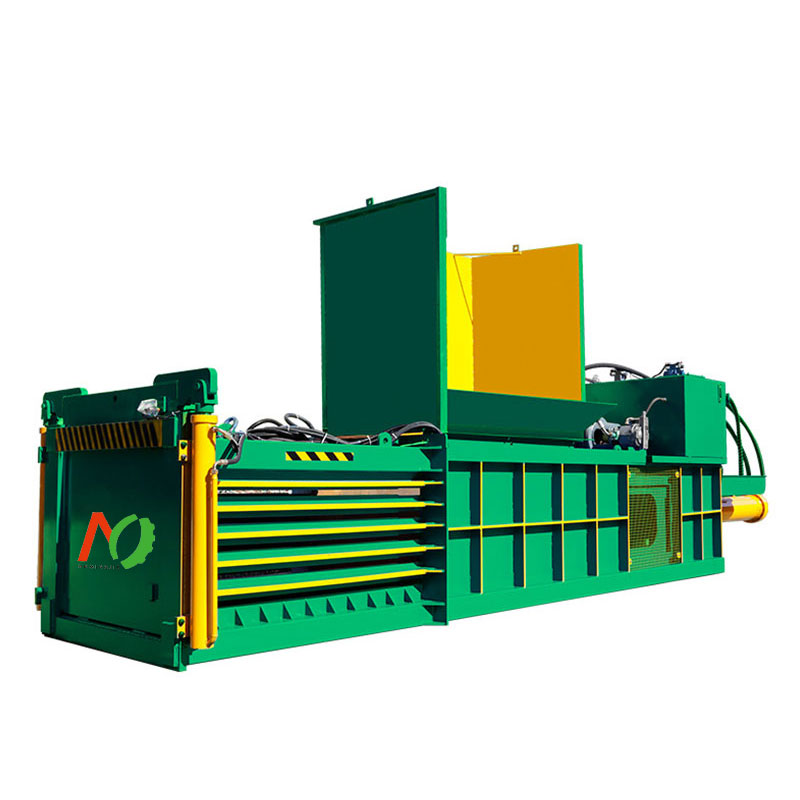

| MJH-80T | 22kw | 245 | 7200*2000*2400 | 1700*1100*850 | 125 | 6000 | |
| MJH-100T | 30kw | 280 | 8800*2000*2500 | 1800*1100*850 | 125 | 6000 | |

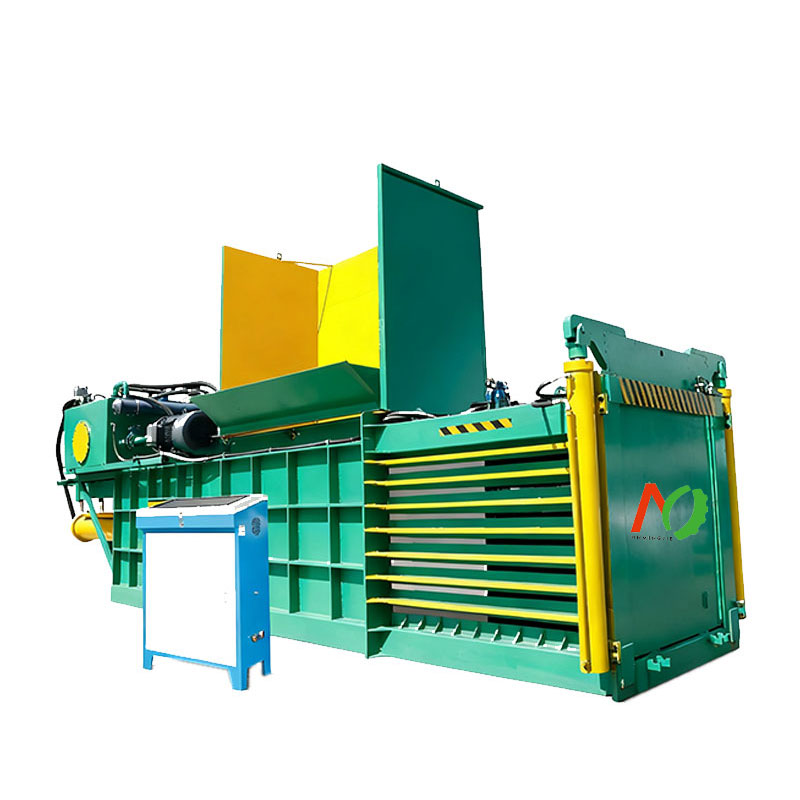

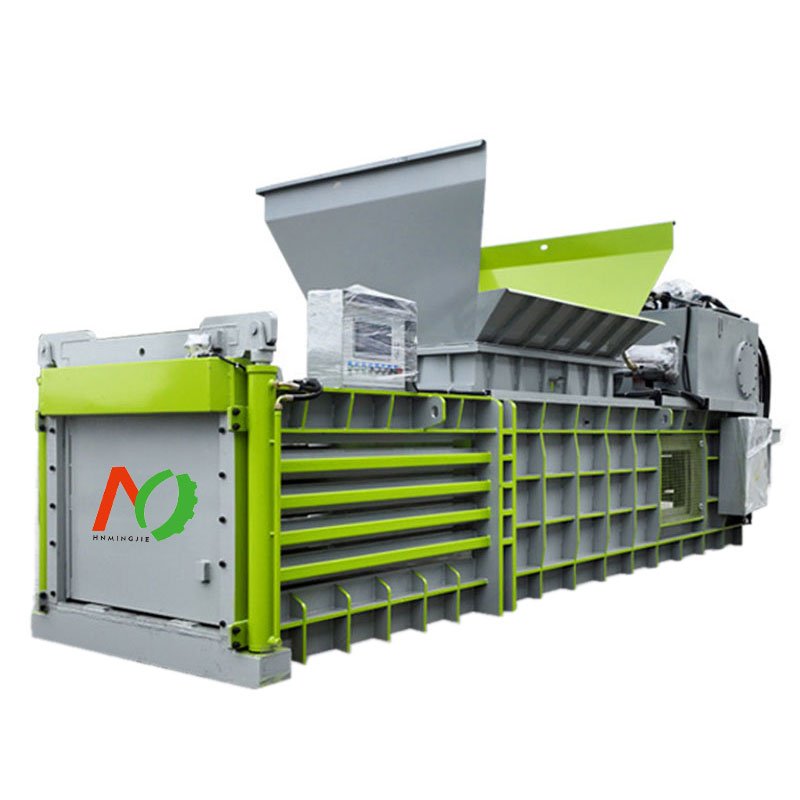

| MJH-125T | 30kw | 300 | 8800*2000*2500 | 1800*1100*850 | 200 | 9600 | |

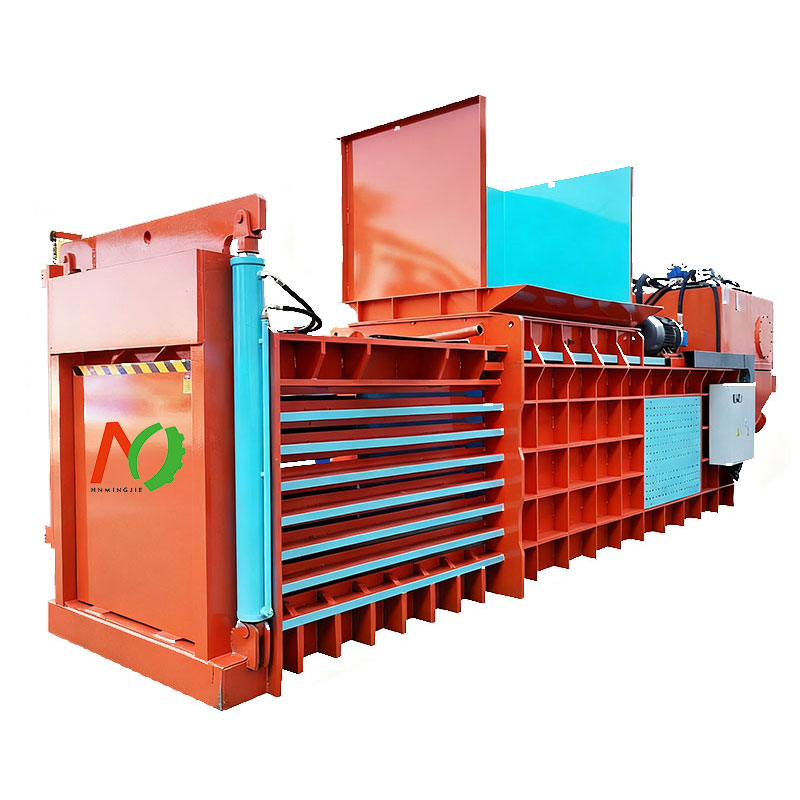

| MJH-160T | 45kw | 351 | 10000*2200*3300 | 2000*1100*1250 | Twin-disc pump | 9600 | |
| MJH-200T | 37kw+37kw | 377 | 10000*2200*3400 | 2000*1100*1250 | Twin pump | 9600 |

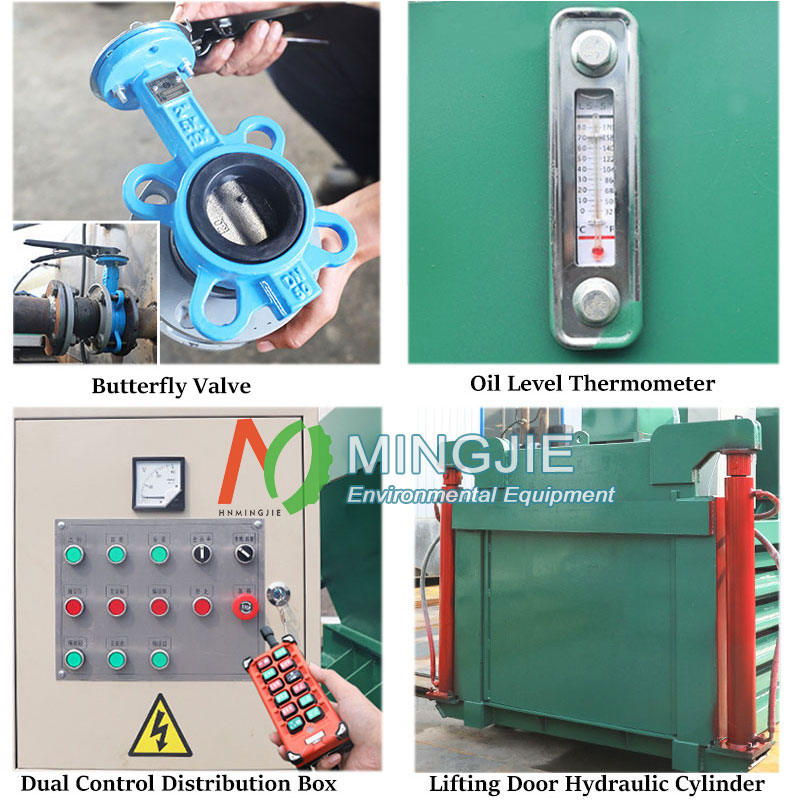

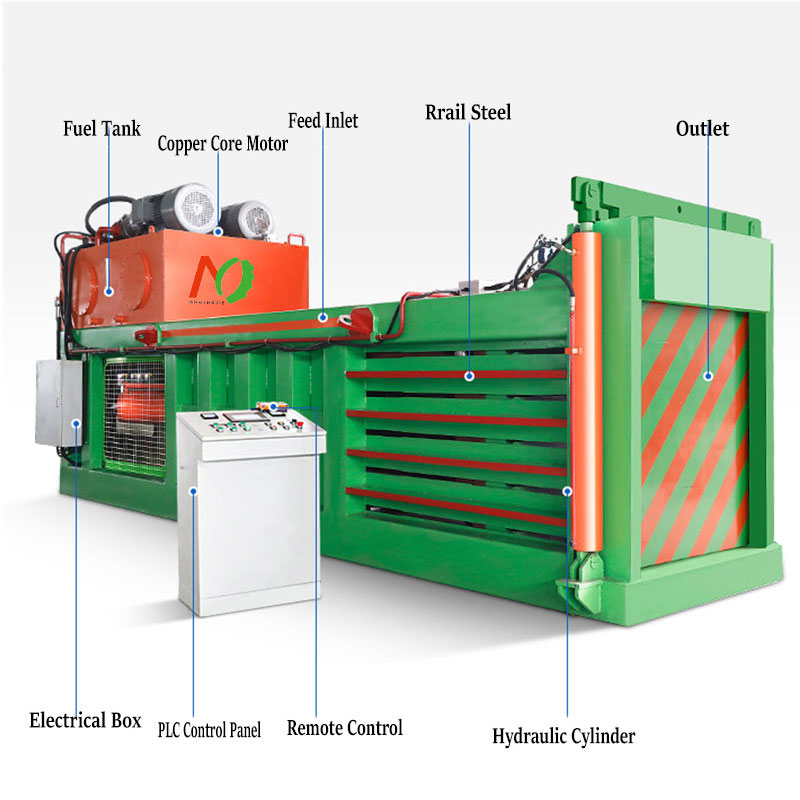

Main Structure
Mainframe
The entire horizontal baler is welded from high-strength steel plates and serves as the basic structure of the entire machine.
Baling Box
The space where the material is compressed and formed. Its size determines the size of the bales.
Feeding Port
Located on the top or side of the baling box, it is used to insert the waste material to be compressed.
Main Cylinder
The core actuator, providing tremendous thrust (ranging from tens to thousands of tons), compressing loose materials into balers.
Lift-Door
Controlled by a hydraulic cylinder, it swings upward to open for easy bale removal and downward to lock securely, withstanding pressure.
Lock Mechanism
Ensures the door is securely locked during the compression process. This mechanism is typically implemented using a hydraulic latch or mechanical self-locking device.

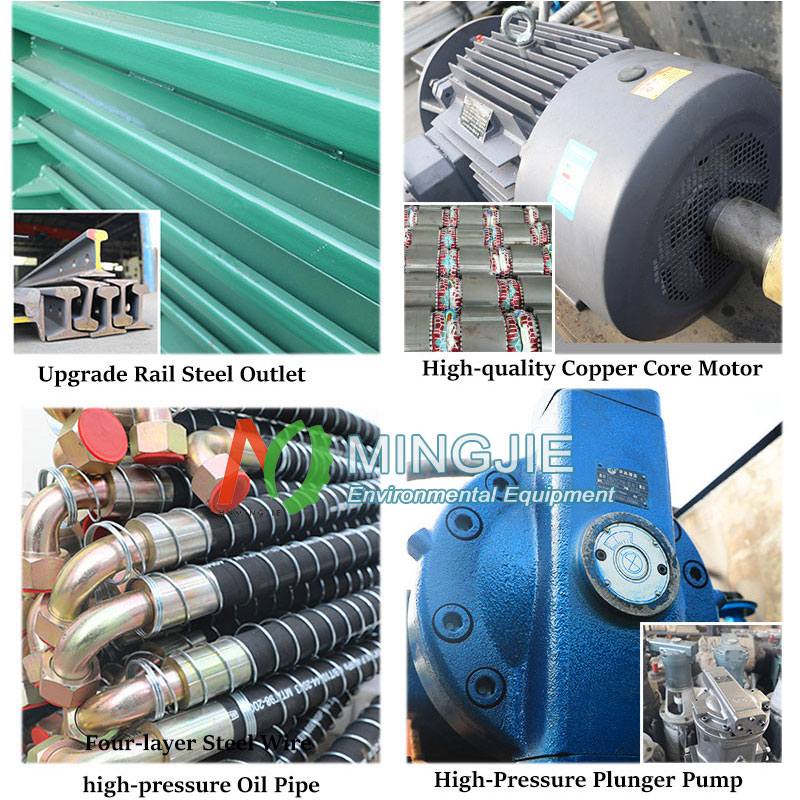

Hydraulic Station
Consists of the motor, hydraulic pump, hydraulic valves, and fuel tank, and is the heart of the machine.
Electronic Control System
Controls the automated operation of the entire baling process and includes a PLC, operating console, and limit switches.
Application
Advantages of Horizontal Baler Machine with Lifting Door
Easy Bag Unloading
Material bale machine is pushed out horizontally and drop directly onto a pallet or transport vehicle. No additional ejection device is required, simplifying the process.
Sturdy Structure
The lift-door opens upward and locks downward by weight and hydraulic pressure, ensuring optimal force distribution. Its high rigidity makes it ideal for compressing scrap metal with high rebound forces.
High Reliability
Compared to side-opening doors, the hinges and locking mechanism of lift-door balers are less susceptible to failure due to deformation. Its failure rate is relatively low.
High Production Efficiency
Mainly semi-automatic control, equipped with a PLC control system and touch screen. The side of the hopper can be connected to a belt conveyor, making it suitable for continuous large-scale production.
