Vertical Baler
Introduction
Vertical baler is one of the most common and widely used types of waste baling machines. It has the advantages of a small footprint, low investment costs, and ease of operation. The vertical baler machines are popular in small and medium-sized factories, warehouses, supermarkets, recycling stations, and other locations.
Mingjie vertical balers are divided into Fully Automatic Vertical Baler, Heavy Duty Vertical Hydraulic Metal Baler, Single-Cylinder Vertical Hydraulic Baler, and Double-Cylinder Vertical Hydraulic Baler Machine according to their configuration.

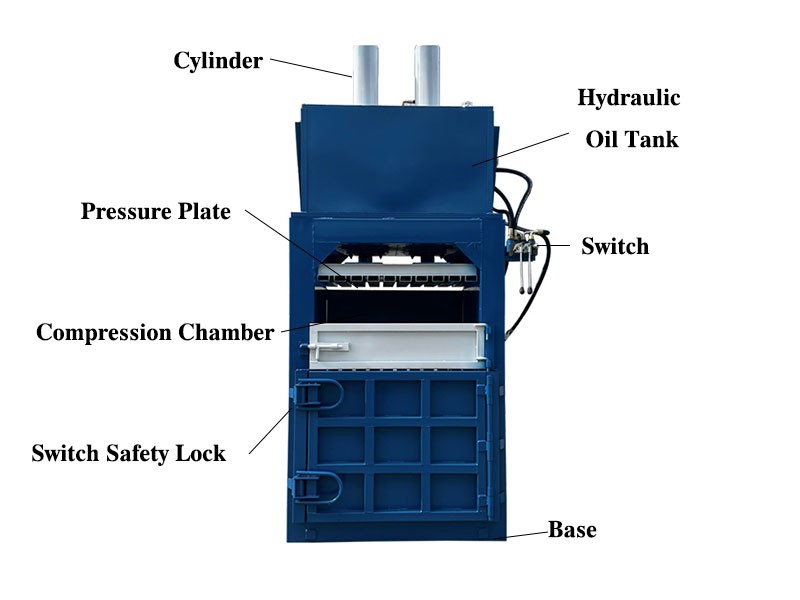

Vertical Baler Structure
The vertical baler compresses in a vertical direction (up and down). Loose materials are fed into the feed port and compressed into blocks in the vertical direction. A vertical baler primarily consists of compression chamber, compression mechanism, strapping device, bale discharge port, and safety devices.
The compression chamber is typically constructed of high-strength steel, offering pressure resistance and a robust structure. The compression mechanism uses a hydraulic system to drive a ram (piston) to apply pressure from top to bottom. Safety devices include an emergency stop button, a safety door lock, and overload protection to ensure safe operation.
How Does a Vertical Baler Work?
01. Manual feeding
The operator places material into the compression chamber through the feed port.
02. Compression
When the material reaches a certain level, the operator activates the compression cycle using a control button. A hydraulic cylinder drives the ram, applying significant downward pressure from above, compressing the loose material to the bottom.
03. Pressure-holding and return stroke
The ram maintains pressure for a short period before automatically returning to its original position, ready for the next feeding.
04. Re-compression
The above process is repeated multiple times until the material in the compression chamber reaches the desired bale size.
05. Bundling
After bundling, the operator inserts the baling string through a channel on the side of the baler.
06. Bundle discharge
The baling system tightens the strapping and hot-melts it. The operator then opens the side discharge door, and the compressed bales are pushed down onto a tray or collection area below.
Features of Vertical Compactor Machine
01. Space-Saving
Vertical compactor uses a vertical compression mechanism, effectively utilizing vertical space. It is tall and require minimal floor space.
02. Easy to Operate
They typically utilize semi-automatic or fully automatic control. The operator simply feeds the material into the machine and presses the start button to complete the baling process.
03. Widely Applicable
It can handle a wide variety of materials, including paper, plastic, metal, and fabric.
04. Energy-Saving
It can effectively reduce the space occupied by waste and promote resource recycling. Some vertical balers utilize a hydraulic system, resulting in lower energy consumption.
05. Economical and Practical
Compared to horizontal balers, vertical balers are less expensive and require less maintenance. They also offer a long service life and a high cost-effectiveness.
Applications of Vertical Baling Machine
Waste Recycling Industry
Vertical compactor machine can process large quantities of waste paper, cardboard, plastic bottles, metal cans, and more. Vertical baling equipment compresses these waste materials into compact bales for easy transportation and subsequent processing.
Supermarkets and Logistics Warehouses
Vertical baling press machine can be used to compress and pack plastic packaging waste and cartons. This effectively reduces waste volume, keeps warehouses cleaner and more organized, and reduces transportation costs.
Textile Industry
Vertical balers can compress textiles, such as used clothing and fabric scraps, into a form that is easily transportable. This facilitates the recycling of textile waste.
Waste Treatment Centers
Vertical baler machine can be used to compress plastic and packaging waste from household waste. This reduces waste space and alleviates waste disposal pressure.
Printing and Paper Mills
The vertical cardboard baler is a key piece of equipment in the waste paper recycling process, efficiently compressing waste paper into bales that meet recycling standards.
