Introduction

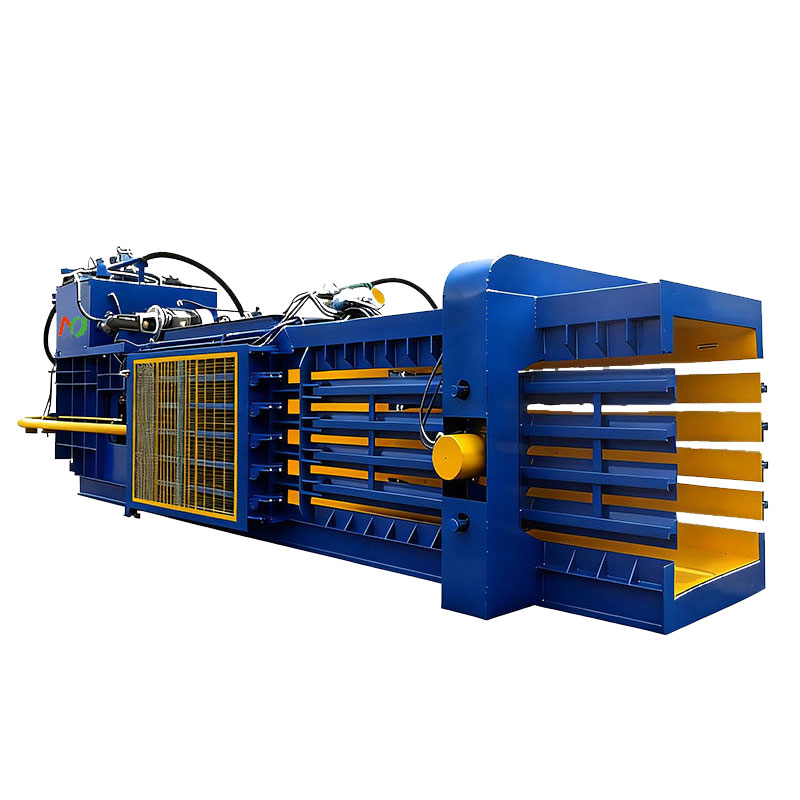

MJF-160T Fully Automatic
The MJF-160T Automatic Horizontal Baling Press Machine is a device that integrates powerful pressure with intelligent control. It is gradually becoming a powerful tool for many enterprises to improve production efficiency and reduce operating costs.
With its strong extrusion pressure, 160T horizontal baling press machine can quickly compress various loose materials. Including waste paper, plastic bottles, old clothes, and straw, into compact bales. This significantly reduces material volume and lowers transportation costs. At the same time, its intelligent control system makes operation simpler and more efficient, providing strong support for modern production in enterprises.
Structure
The powerful compression capacity and high efficiency of the 160T Automatic Horizontal Baling Press Machine are inseparable from its ingenious structural design. It mainly consists of a mechanical system, a control system, a feeding system, and a power system.
Mechanical System
The mechanical system undertakes the key tasks of material compression and bale formation. It mainly consists of the machine body, compression chamber, pushing device, and baling device.
The machine body is welded from high-strength steel, resulting in a robust structure. It can withstand enormous pressure without deformation, providing a stable mounting base for other components.
The compression chamber is the space for material compression. Its size and shape are designed according to different material characteristics and bale requirements. The smooth interior reduces friction between the material and the chamber walls, improving compression efficiency.
The pushing device is the actuator that pushes the material into the compression chamber for compression. It typically consists of a pushing cylinder and a pushing head. The pusher cylinder, hydraulically driven, generates powerful thrust. The pusher head and cylinder are connected via a spherical structure, ensuring high reliability and evenly distributing force to the material for optimal compression.
The baling device is responsible for binding and securing the compressed material into complete bales.
Control System
The control system provides intelligent operation capabilities, automating the baling process. It mainly consists of a PLC, human-machine interface, and sensors.
Feeding System
The feeding system is responsible for quickly and accurately conveying materials to the compression chamber, ensuring efficient baling.
Conveyor belt feeding is the most common method. It uses a motor-driven conveyor belt to smoothly transport materials to the compressor’s inlet. The conveyor belt speed can be adjusted according to production needs, offering advantages such as large conveying capacity, high speed, and good stability.
Power System
The power system provides strong power support for the equipment’s operation. The 160T horizontal baling compressor typically uses a hydraulic drive system, mainly composed of a motor, oil pump, oil tank, and hydraulic valves. Hydraulic drive offers advantages such as high pressure, smooth operation, fast response, and low noise. It can meet the power and precise control requirements of 160T horizontal baling compressor.
