Textile Baler

Features

• High-Strength Structure
• High Efficiency & Energy Saving
• Reduced Transportation Costs
• Source Factory
• Advanced Hydraulic System
• High-Strength Structure
• Robust & Durable
• Global Export
• High-Density Compression
• Automated Operation
• Wide Application

Textile baling machines are hydraulically driven, compressing clothing into tight bales. They feature high pressure and a high compression ratio. The main frame is typically made of high-quality steel plates, ensuring a robust structure capable of withstanding significant pressure.

Textile balers use a hydraulic system to efficiently bale waste fibers into dense blocks. They are specifically designed for recycling and baling secondhand clothing, quilts, shoes, wool, cotton, textiles, fabrics, garments, bedding, curtains, carpets, and other products. The baled textile waste is reduced in volume, making it easier to store and transport.

Mingjie clothing baling machines can be categorized into vertical textile baler and horizontal baler machine based on their structure.

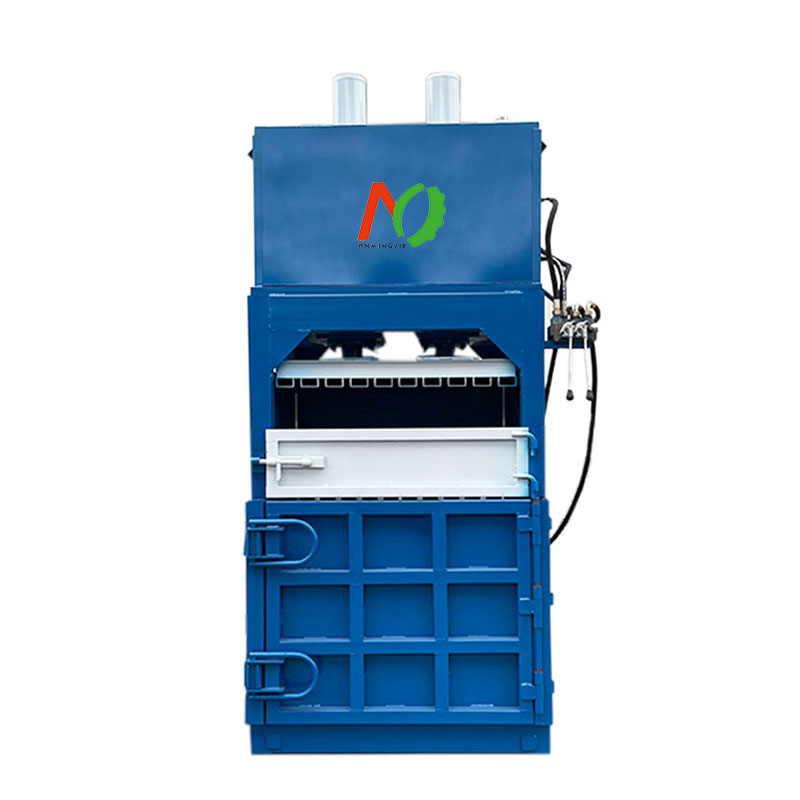

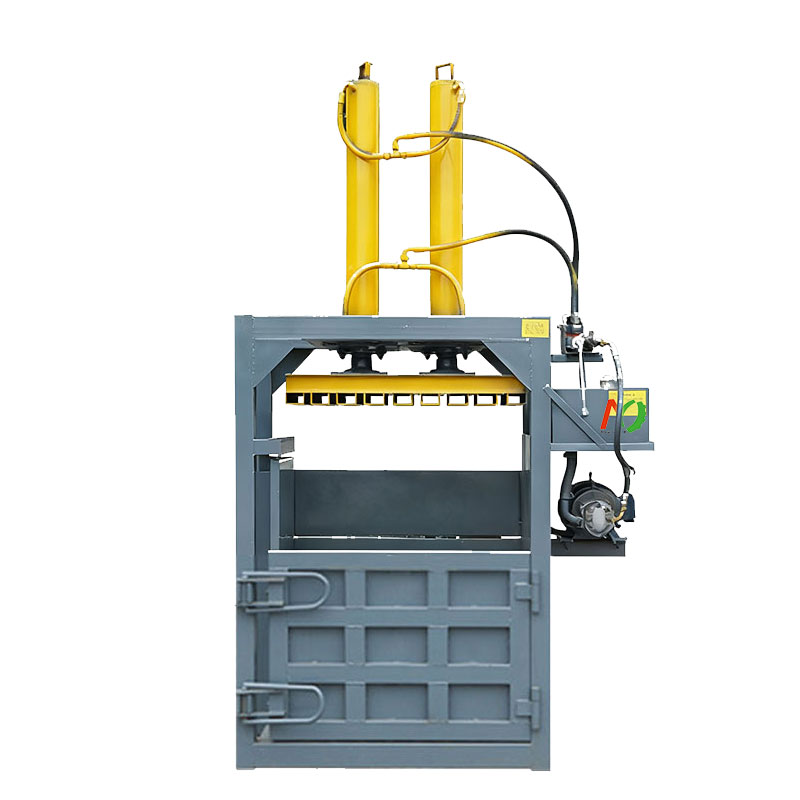

Vertical Textile Baler

The vertical textile baler uses a vertical compression method, resulting in a compact structure and relatively small footprint. It mainly consists of a support frame, compression cylinder, feed inlet, discharge outlet, and control system. Operating the vertical rag baler is relatively simple, typically using semi-automatic control. The operator simply places the clothing into the feed inlet, and presses the start button to complete the compression and baling process.

The compression cylinder is vertically mounted on top of the support frame, with the piston rod extending downwards to directly act on the material. The feed inlet is located at the top for easy access by the operator to feed in the waste clothing. The discharge outlet is located at the bottom, from which the compressed clothing bales exit.

Vertical Textile Baling Machine Technical Specifications

Vertical Baler Machine	Model	Power	Packed Size(mm)	Machine Size(mm)	Oil pump	Cylinder	Cylinder Size(mm)
	MJV-8T	4KW	600*400*600	1250*650*2150	306	Single	90
	MJV-10T	7.5KW	800*400*800	1450*650*2600	320	Single	115
	MJV-20T	7.5KW	800*400*800	1450*650*2700	325	Single	115
	MJV-30T1	11KW	1000*600*800	1650*850*2700	532	Single	160
	MJV-30T2	11KW	1000*600*800	1650*850*2600	532	Double	125
	MJV-40T	11KW	1000*600*800	1650*850*2700	550	Double	125
	MJV-60T	15KW	1100*750*950	1600*2100*3100	563	Double	160
	MJV-80T	18.5KW	1100*750*950	1700*2100*3300	563	Double	160
	MJV-100T	22KW	1100*750*950	1700*2100*3900	563	Double	180

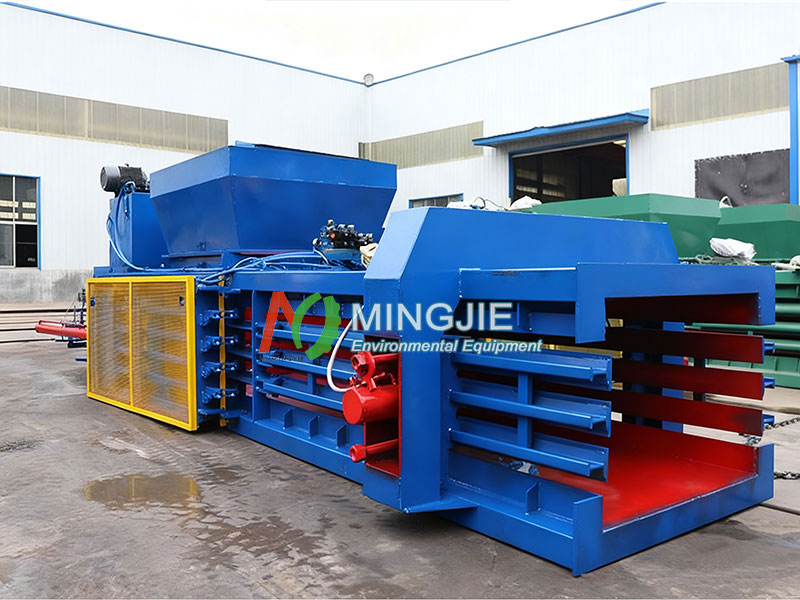

Horizontal Textile Baler

Horizontal clothes baling machine adopts a horizontal compression method. It consists of a machine body, a pushing device, a compression chamber, a strapping device, and an electrical control system. The pushing device, mounted on one side of the machine body, is driven by a hydraulic cylinder to horizontally push the material into the compression chamber. The compression chamber is the core area where the material is compressed. Its large internal dimensions allow it to hold a significant amount of waste clothing.

Horizontal textile baling machines are suitable for processing large quantities of waste clothing, such as in large-scale waste clothing recycling centers and waste processing workshops in textile enterprises. Automatic horizontal balers offer high production efficiency, capable of baling a large number of garments per hour, meeting the needs of large-scale production. They are highly automated, requiring only a small number of operators for monitoring and maintenance to achieve continuous operation.

Horizontal Baler Technical Specifications

Fully automatic horizontal baler	Models	Power	CylinderDiameter(mm)	Machine Size(mm)	Packed Size(mm)(Adjustable Length)	Oil Pump	Conveyor Belt(mm)
	MJF-60T	18.5kw	230	7200*2300*2600	1100*850(W*H)	80	5000
	MJF-80T	22kw	245	7200*2300*2600	1100*850(W*H)	125	5000
	MJF-160T	45kw	351	9600*2300*3600	1100*1250(W*H)	Twin-disc pump	9600
	MJF-200T	37kw + 37kw	377	10000*2300*3500	1100*1250(W*H)	Twin pump	9600

Lifting door horizontal baler	Models	Power	CylinderDiameter(mm)	Machine Size(mm)	Packed Size(mm)(Adjustable Length)	Oil Pump	Conveyor Belt(mm)
	MJH-60T	18.5kw	230	7200*2000*2400	1700*1100*850	80	5000
	MJH-80T	22kw	245	7200*2000*2400	1700*1100*850	125	6000
	MJH-100T	30kw	280	8800*2000*2500	1800*1100*850	125	6000
	MJH-125T	30kw	300	8800*2000*2500	1800*1100*850	200	9600
	MJH-160T	45kw	351	10000*2200*3300	2000*1100*1250	Twin-disc pump	9600
	MJH-200T	37kw + 37kw	377	10000*2200*3400	2000*1100*1250	Twin pump	9600
