Features
- High-Strength Structure
- High Efficiency & Energy Saving
- Reduced Transportation Costs
- Source Factory
- Advanced Hydraulic System
- High-Strength Structure
- Robust & Durable
- Global Export
- High-Density Compression
- Automated Operation
- Wide Application
Mingjie paper balers are mainly classified into two types based on their structure: vertical baler and horizontal baler. Vertical baler has a smaller footprint and is suitable for spaces with limited space. Horizontal baler has a larger processing capacity and is suitable for companies with high production demands.
Paper balers can also be classified into three types based on their level of automation: manual, semi-automatic, and fully automatic. Fully automatic baler machines are equipped with an advanced PLC control system. They can achieve automatic feeding, compression, bundling, and bale ejection throughout the entire process.

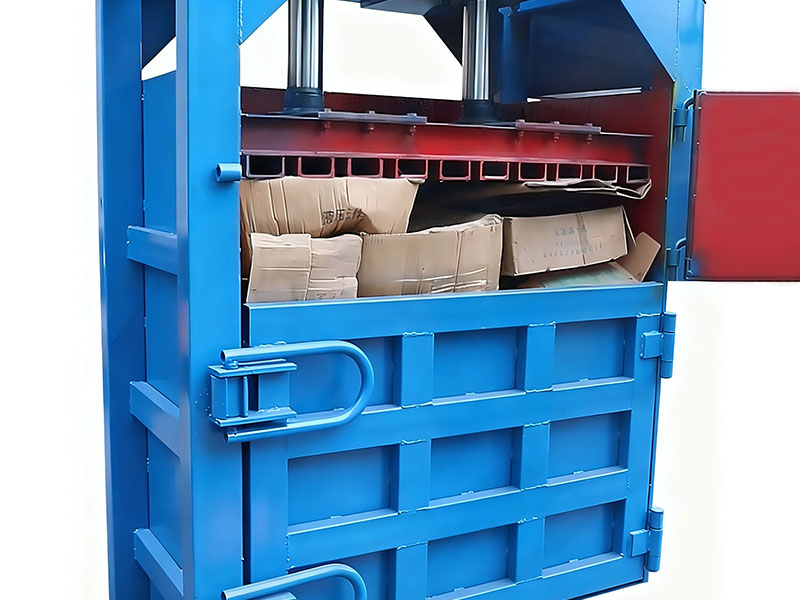

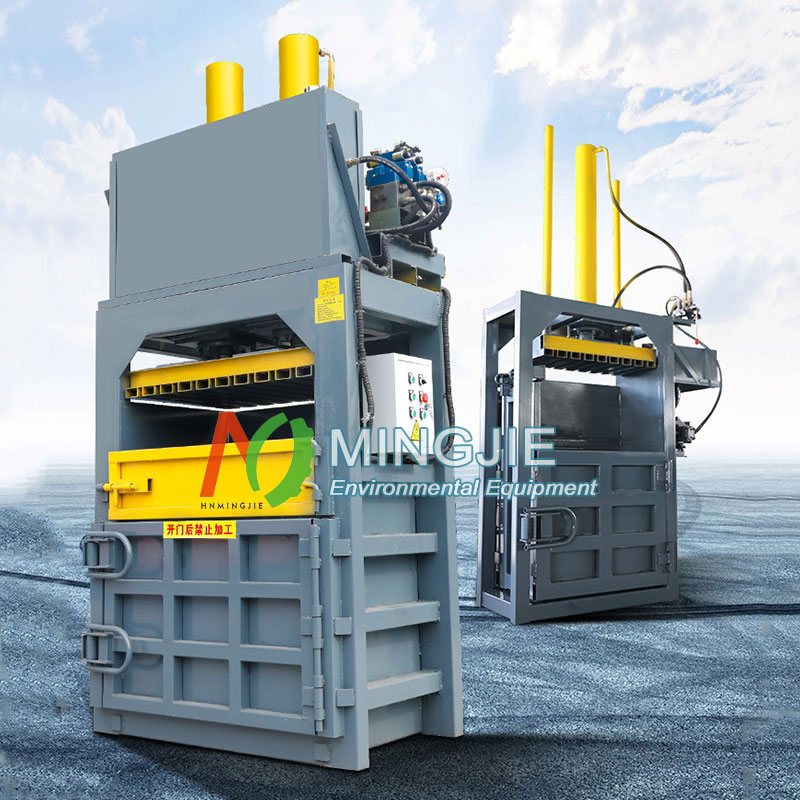

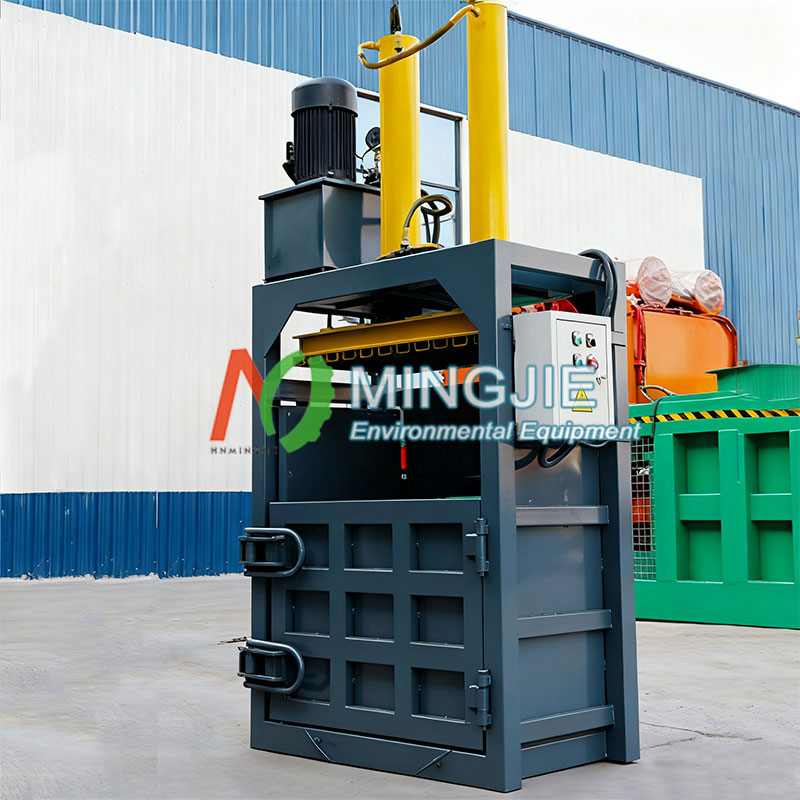

Vertical Paper Baler
Vertical waste cardboard balers utilize a vertical compression structure, resulting in a small footprint. They are particularly suitable for space-constrained environments such as small waste recycling stations, community recycling points, and small e-commerce warehouses.
Vertical cardboard baler is easy to operate, mostly in semi-automatic mode. Operators simply feed the waste cardboard boxes into the inlet and press the start button to complete the compression and bundling process. The compression force is moderate but sufficient for handling loose waste cardboard boxes, express delivery boxes, and other similar materials. It compresses them into uniformly dense bales, effectively saving storage and transportation space.
Vertical Baler Technical Specifications
| Fully Automatic Vertical Hydraulic Baler | Models | Power | Cylinder Diameter(mm) | Machine Size(mm) | Packed Size(mm)(Adjustable Length) | Oil Pump |

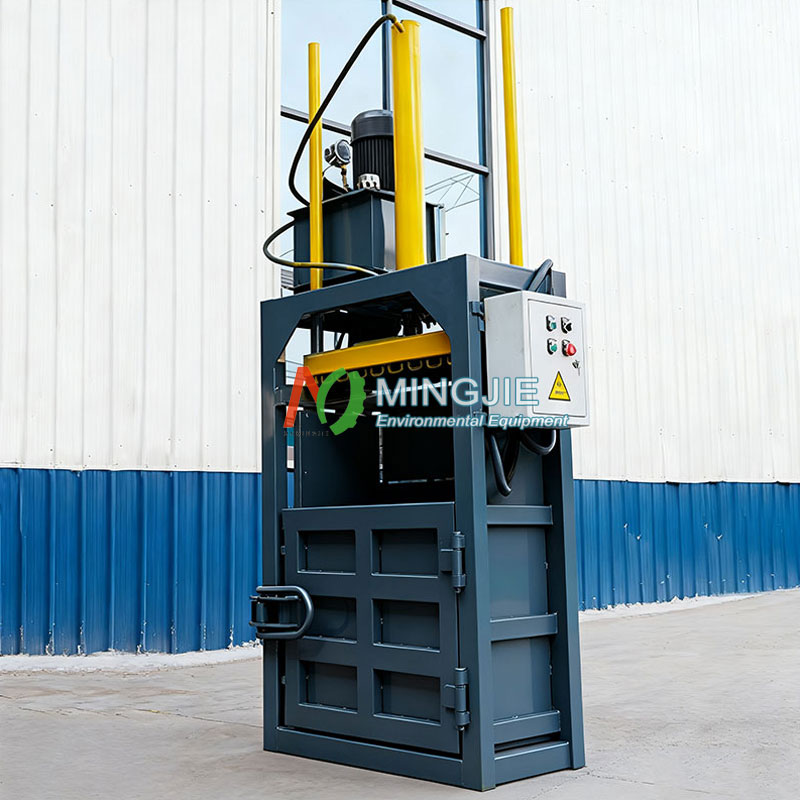

| MJA-10T | 4kw | 115 | 1400*750*2950 | 800*400*1350 | 320 | |
| 4kw | 115 | 1400*850*2950 | 800*400*1350 | 320 | ||
| MJA-20T | 4kw | 140 | 1400*750*2950 | 800*400*1350 | 325 | |
| 4kw | 140 | 1400*850*2950 | 800*400*1350 | 325 | ||
| MJA-30T | 5.5kw | 160 | 1400*970*3050 | 1000*600*1350 | 532 | |
| 5.5kw | 160 | 1600*920*3150 | 1000*600*1350 | 532 | ||
| 5.5kw | 160 | 1600*990*3150 | 1000*600*1350 | 532 | ||
| MJA-40T | 7.5kw | 185 | 1400*970*3100 | 1000*600*1350 | 550 | |
| 7.5kw | 185 | 1600*920*3200 | 1000*600*1350 | 550 | ||
| 7.5kw | 185 | 1600*990*3200 | 1000*600*1350 | 550 | ||
| MJA-60T | 11kw | 210 | 1920*1250*3450 | 1150*900*1450 | 563 | |
| 11kw | 210 | 1920*1250*3450 | 1150*900*1450 | 563 |

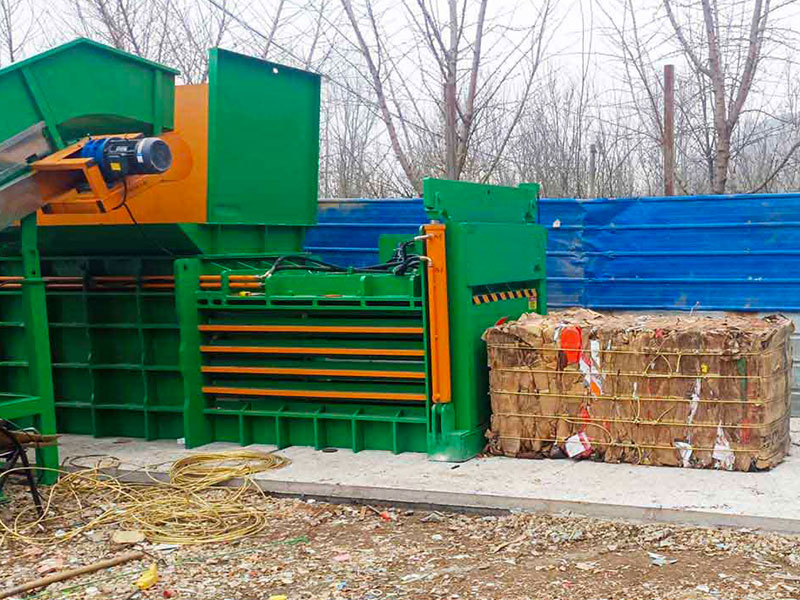

Horizontal Paper Baler

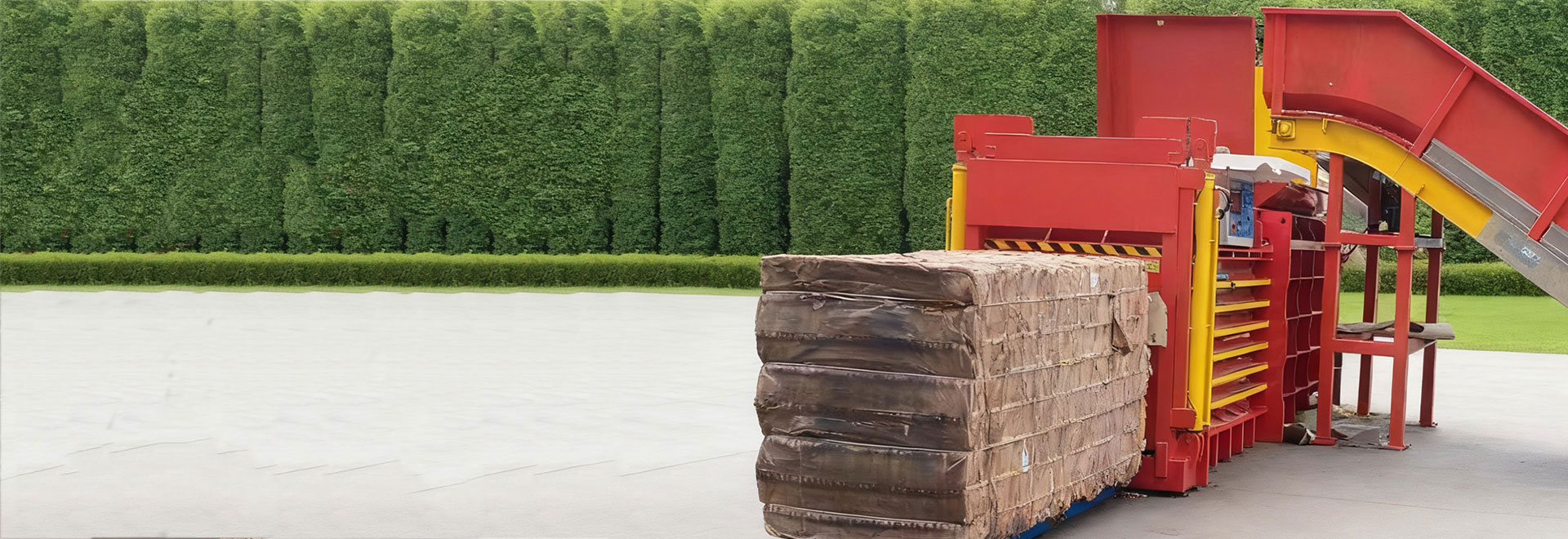

The horizontal waste cardboard baler uses horizontal compression as its core technology. Equipped with a high-power hydraulic system, its compression force can reach 30-200 tons. It can process large quantities of loosely packed waste cardboard boxes, such as those generated in logistics sorting centers, large e-commerce warehouses, and paper mill recycling workshops.
The automatic horizontal baling press machine can work with a conveyor belt to achieve continuous feeding, compression, bundling, and discharging. Its hourly processing capacity can reach several tons or even tens of tons, significantly improving the efficiency of large-scale recycling. Furthermore, the horizontal baling chamber is larger, accommodating larger cardboard boxes or bundles of packaging waste.
Automatic Horizontal Paper Baler Technical Specifications
| Fully Automatic Horizontal Baler | Models | Power | CylinderDiameter(mm) | Machine Size(mm) | Packed Size(mm)(Adjustable Length) | Oil Pump | Conveyor Belt(mm) |
| MJF-60T | 18.5kw | 230 | 7200*2300*2600 | 1100*850(W*H) | 80 | 5000 | |
| MJF-80T | 22kw | 245 | 7200*2300*2600 | 1100*850(W*H) | 125 | 5000 | |
| MJF-160T | 45kw | 351 | 9600*2300*3600 | 1100*1250(W*H) | Twin-disc pump | 9600 | |

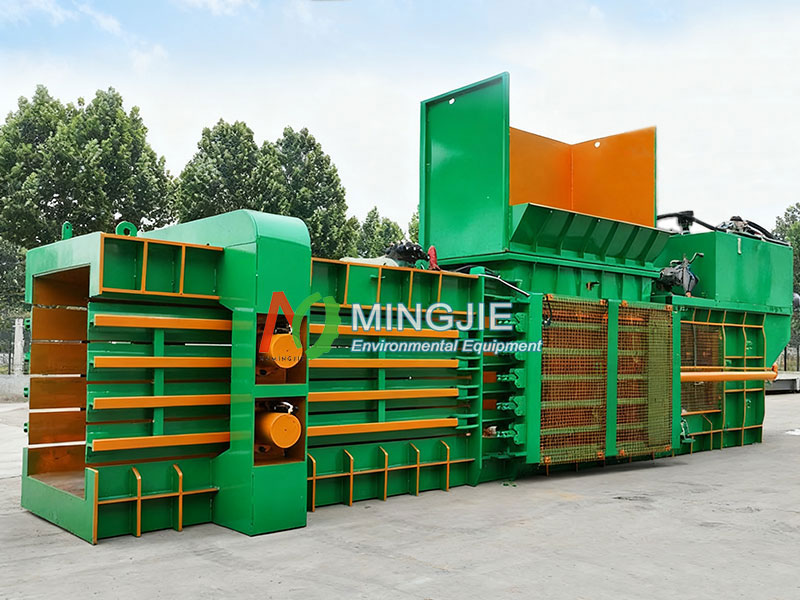

| MJF-200T | 37kw + 37kw | 377 | 10000*2300*3500 | 1100*1250(W*H) | Twin pump | 9600 |
| Lifting Door Horizontal Baler | Models | Power | Cylinder Diameter(mm) | Machine Size(mm) | Packed Size(mm) | Oil Pump | Conveyor Belt(mm) |
| MJH-60T | 18.5kw | 230 | 7200*2000*2400 | 1700*1100*850 | 80 | 5000 | |
| MJH-80T | 22kw | 245 | 7200*2000*2400 | 1700*1100*850 | 125 | 6000 | |
| MJH-100T | 30kw | 280 | 8800*2000*2500 | 1800*1100*850 | 125 | 6000 | |
| MJH-125T | 30kw | 300 | 8800*2000*2500 | 1800*1100*850 | 200 | 9600 | |
| MJH-160T | 45kw | 351 | 10000*2200*3300 | 2000*1100*1250 | Twin-disc pump | 9600 | |
| MJH-200T | 37kw + 37kw | 377 | 10000*2200*3400 | 2000*1100*1250 | Twin pump | 9600 |
