Introduction

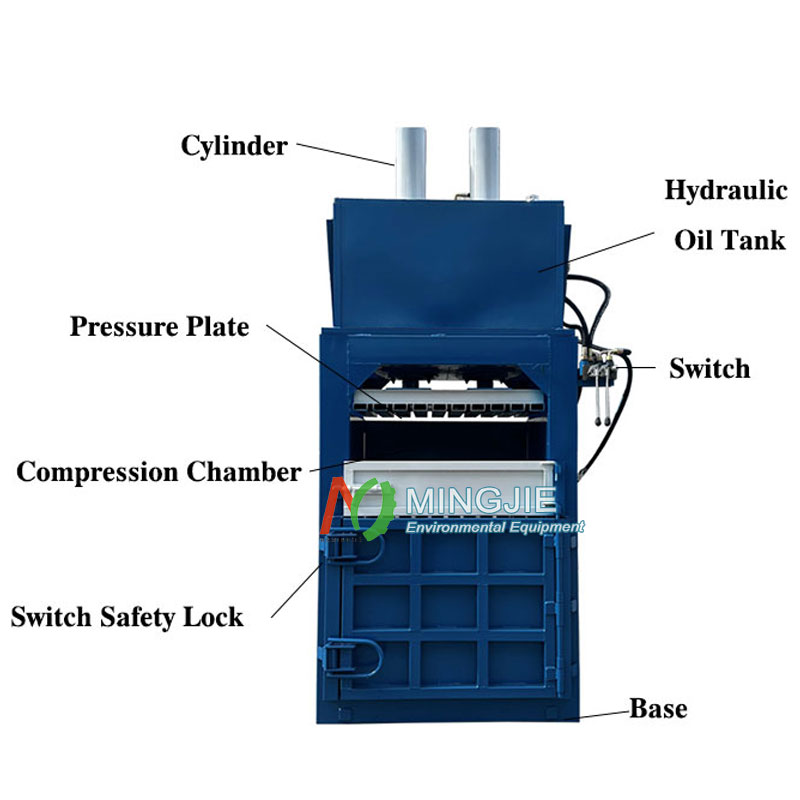

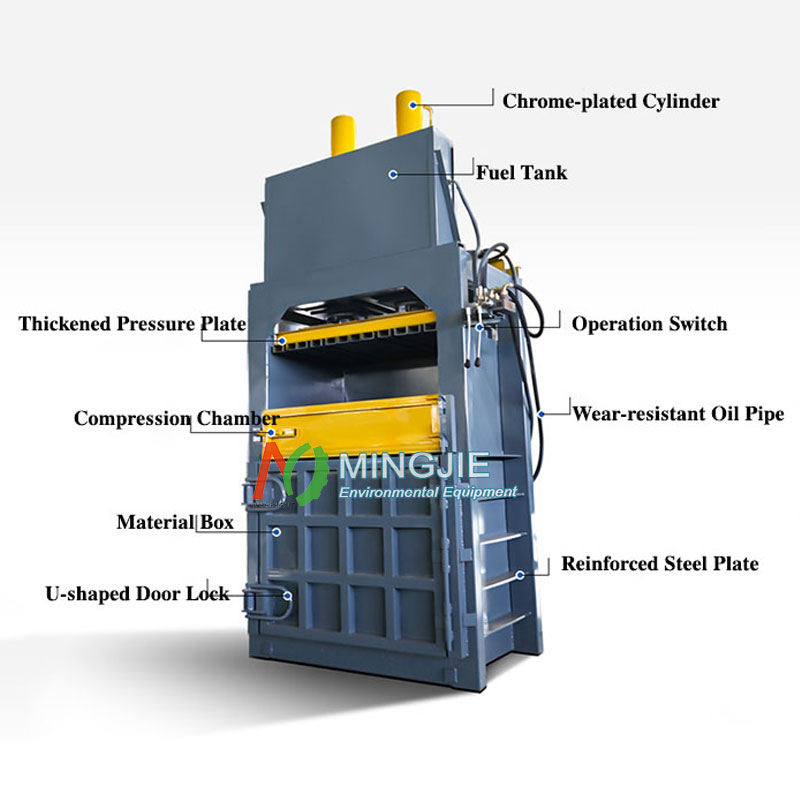

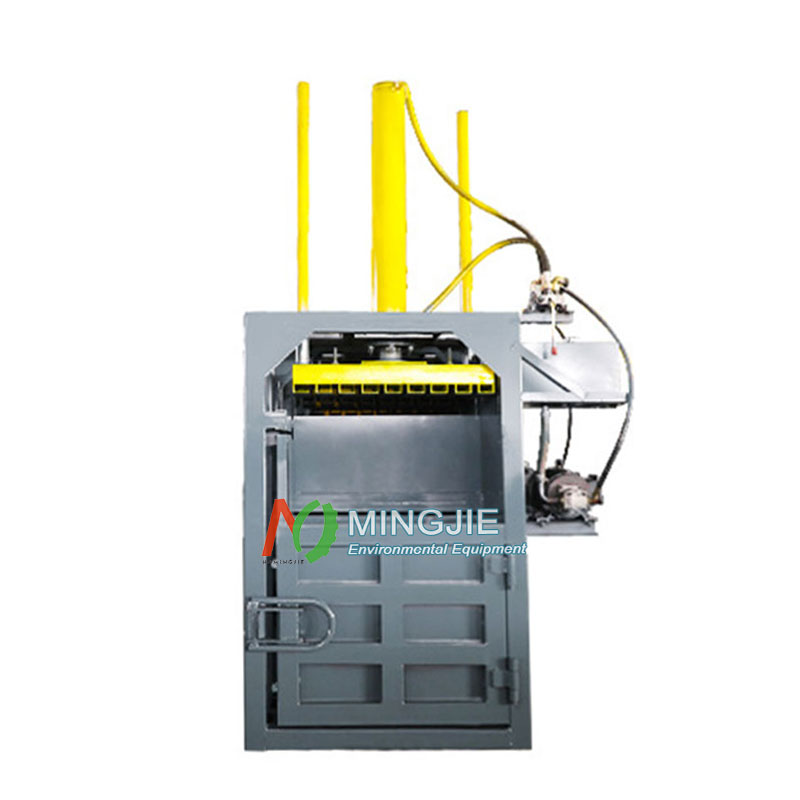

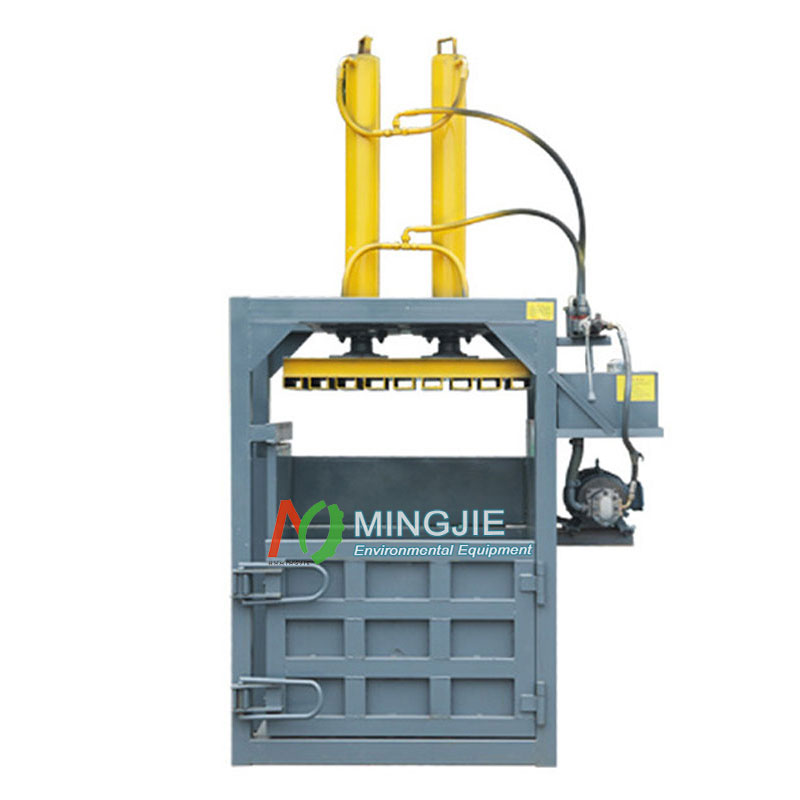

As a highly efficient compression device, small vertical baler machine is widely used in various fields. Its unique advantages help businesses and institutions solve material storage and transportation challenges. The operating principle of small vertical baler machine is simple. Its core components include a compression chamber, a compression mechanism, and a strapping device.
Parameters
| Vertical Baler Machine | Model | Power | Packed Size(mm) | Machine Size(mm) | Oil pump | Cylinder | Cylinder Size(mm) |
| MJV-8T | 4KW | 600*400*600 | 1250*650*2150 | 306 | Single | 90 | |
| MJV-10T | 7.5KW | 800*400*800 | 1450*650*2600 | 320 | Single | 115 | |
| MJV-20T | 7.5KW | 800*400*800 | 1450*650*2700 | 325 | Single | 115 | |

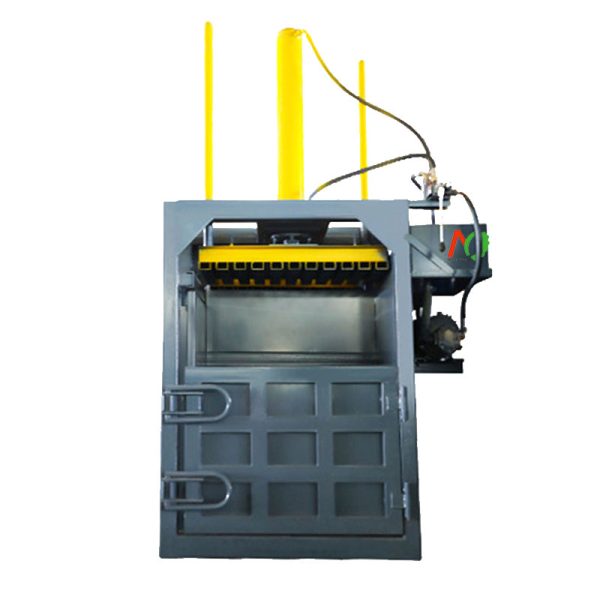

| MJV-30T1 | 11KW | 1000*600*800 | 1650*850*2700 | 532 | Single | 160 | |
| MJV-30T2 | 11KW | 1000*600*800 | 1650*850*2600 | 532 | Double | 125 | |
| MJV-40T | 11KW | 1000*600*800 | 1650*850*2700 | 550 | Double | 125 | |
| MJV-60T | 15KW | 1100*750*950 | 1600*2100*3100 | 563 | Double | 160 | |
| MJV-80T | 18.5KW | 1100*750*950 | 1700*2100*3300 | 563 | Double | 160 | |
| MJV-100T | 22KW | 1100*750*950 | 1700*2100*3900 | 563 | Double | 180 |
Working Principle
01.
When material is placed into the vertically designed compression chamber, the compression mechanism begins to function. It primarily uses a hydraulic system to drive a ram (piston) to exert strong pressure from top to bottom.
02.
This process strongly compresses the loose material, significantly compressing internal voids and rapidly reducing its volume.
03.
Once compression is complete, the strapping machine is manually operated. Strapping tape is used to secure the compressed material block tightly to prevent it from spreading.
04.
Finally, the ram resets, and the bale is smoothly ejected from the discharge port, completing a complete baling cycle.
Advantages
Efficient Space Utilization
The vertical design of the small vertical baler machine is a major drawcard. Compared to horizontal balers, it occupies a significantly smaller footprint. This is particularly advantageous in small recycling stations, supermarket storage rooms, or community waste disposal sites with limited space.
Easy and User-Friendly Operation
The small vertical baler is very simple to operate, featuring semi-automatic control. The operator simply places the material in the designated location. Then, press the start button, and the machine automatically completes the subsequent compression process.
Wide Range of Applicable Materials
The small vertical baler has a wide range of applications and can handle a wide variety of materials. From waste paper and cardboard to waste plastic bottles and plastic film, textiles, and used clothing, it can easily handle them. The small vertical baler can compress and bale these different materials separately, greatly facilitating subsequent sorting, transportation, and recycling.
Economical and Practical: Highly Cost-Effective
From a cost perspective, the small vertical baler is relatively affordable, making it affordable for most businesses and institutions. Furthermore, its low energy consumption keeps operating costs low. In terms of maintenance, the structure is relatively simple, and the parts are easy to replace, without the need for a professional maintenance team.
