Introduction
Fully automatic vertical baler has high degree of automation, is gradually replacing traditional semi-automatic equipment. It is becoming increasingly indispensable in sectors such as waste recycling, manufacturing, and logistics warehousing.
These fully automatic vertical balers utilize intelligent control systems to integrate the entire process: feeding, compression, bundling, and discharging. These vertical balers not only significantly improve processing efficiency but are also more adaptable to the demands of large-scale, continuous production. They also provide key support for businesses to reduce costs, increase efficiency, and achieve environmental compliance.
Parameters
| Fully Automatic Vertical Baler | Model | Power | Cylinder Diameter(mm) | Machine Size(mm) | Packed Size(mm) | Oil Pump |

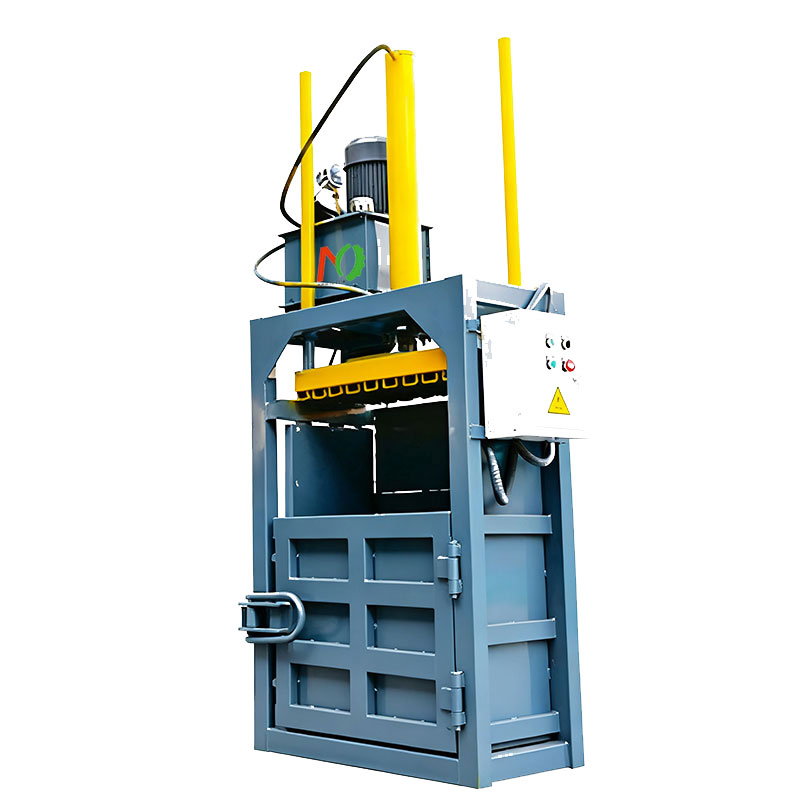

| MJA-10T | 4kw | 115 | 1400*750*2950 | 800*400*1350 | 320 | |
| 4kw | 115 | 1400*850*2950 | 800*400*1350 | 320 | ||
| MJA-20T | 4kw | 140 | 1400*750*2950 | 800*400*1350 | 325 | |
| 4kw | 140 | 1400*850*2950 | 800*400*1350 | 325 | ||
| MJA-30T | 5.5kw | 160 | 1400*970*3050 | 1000*600*1350 | 532 | |
| 5.5kw | 160 | 1600*920*3150 | 1000*600*1350 | 532 | ||
| 5.5kw | 160 | 1600*990*3150 | 1000*600*1350 | 532 | ||

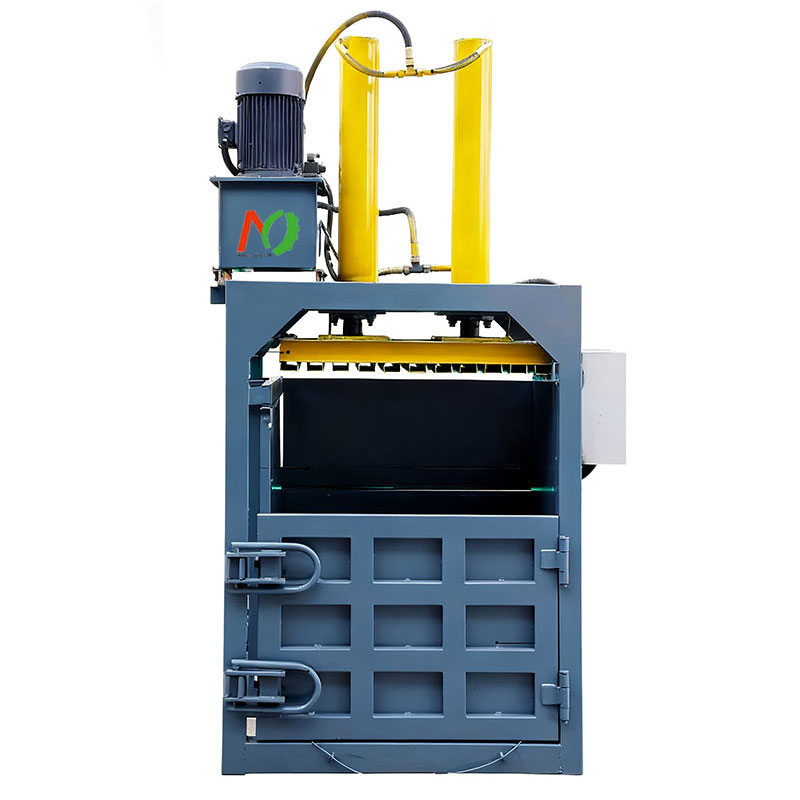

| MJA-40T | 7.5kw | 185 | 1400*970*3100 | 1000*600*1350 | 550 | |
| 7.5kw | 185 | 1600*920*3200 | 1000*600*1350 | 550 | ||
| 7.5kw | 185 | 1600*990*3200 | 1000*600*1350 | 550 | ||
| MJA-60T | 11kw | 210 | 1920*1250*3450 | 1150*900*1450 | 563 | |
| 11kw | 210 | 1920*1250*3450 | 1150*900*1450 | 563 |
Core Design
Intelligent Control System
Utilizing a PLC + touchscreen human-machine interface system, compression parameters for different materials can be preset, enabling “one-button start, automatic operation.”
Automatic Feeding and Sorting System
Equipped with a conveyor-type automatic feeding mechanism, it seamlessly integrates with upstream production lines (such as waste paper shredders and plastic sorting lines) to ensure continuous material transport.
Integrated Automatic Strapping and Discharging
Traditional small vertical balers require manual strapping, tensioning, and hot-melting, which is not only inefficient but can also lead to loose bales due to improper operation. The fully automatic model features a built-in integrated strapping mechanism that “threads – tensions – hot-melts – cuts,” allowing for simultaneous strapping of two or three straps. Strapping time per bale is reduced to less than 30 seconds, with uniform strapping tension and a 20% increase in bale density. Furthermore, during the discharge phase, a hydraulic pusher automatically pushes the bales to a designated area, eliminating the need for manual intervention.
Advantages
Efficient Space Utilization
The vertical design of the small vertical baler machine is a major drawcard. Compared to horizontal balers, it occupies a significantly smaller footprint. This is particularly advantageous in small recycling stations, supermarket storage rooms, or community waste disposal sites with limited space.
Easy and User-Friendly Operation
The small vertical baler is very simple to operate, featuring semi-automatic control. The operator simply places the material in the designated location. Then, press the start button, and the machine automatically completes the subsequent compression process.
Wide Range of Applicable Materials
The small vertical baler has a wide range of applications and can handle a wide variety of materials. From waste paper and cardboard to waste plastic bottles and plastic film, textiles, and used clothing, it can easily handle them. The small vertical baler can compress and bale these different materials separately, greatly facilitating subsequent sorting, transportation, and recycling.
Economical and Practical: Highly Cost-Effective
From a cost perspective, the small vertical baler is relatively affordable, making it affordable for most businesses and institutions. Furthermore, its low energy consumption keeps operating costs low. In terms of maintenance, the structure is relatively simple, and the parts are easy to replace, without the need for a professional maintenance team.
