Introduction

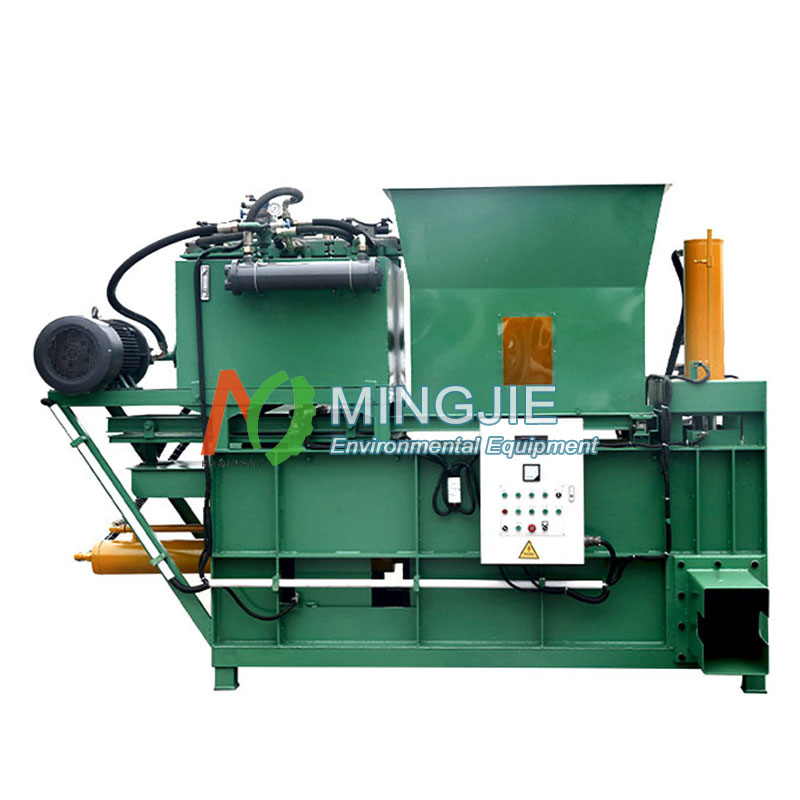

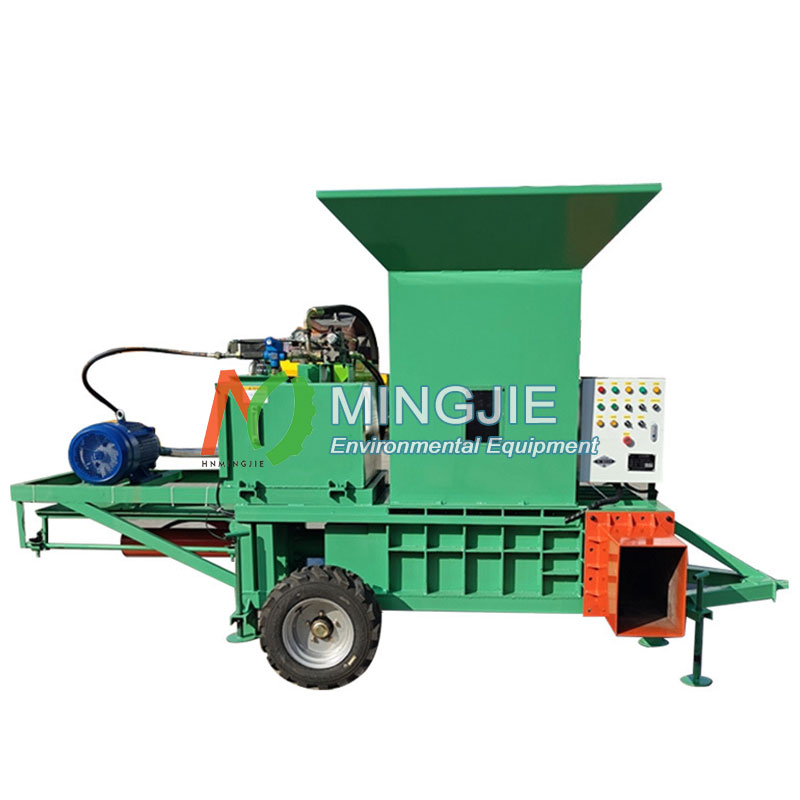

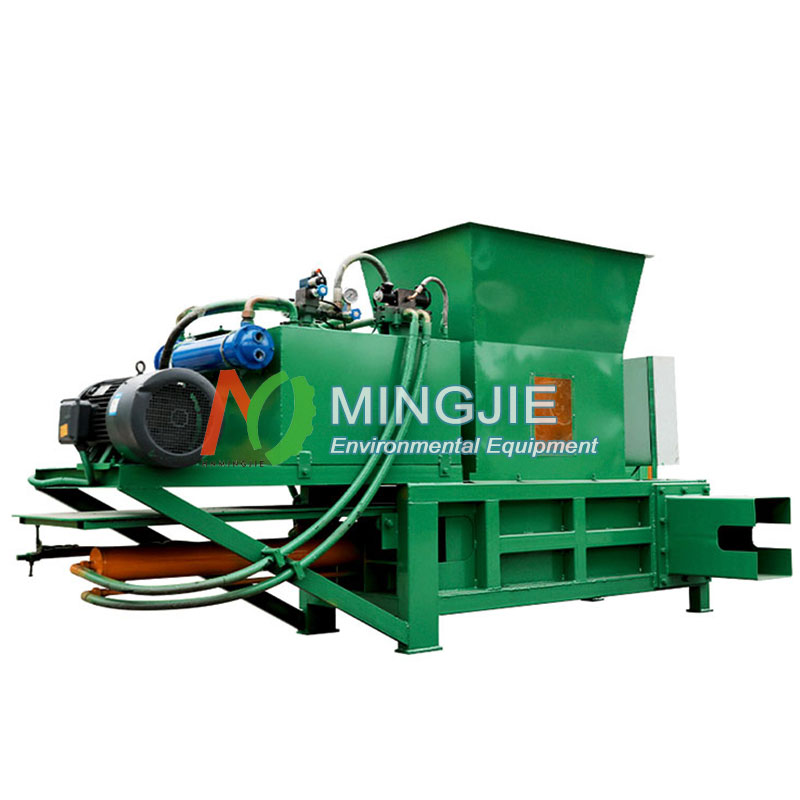

Silage baler is a device that compresses, packages, and seals crushed or chopped silage. It is mainly used for the rapid baling of hay, straw, corn stalks, and alfalfa. It has the advantages of compact structure, simple operation, stable and reliable transmission, and flexible maneuverability. Silage baler machines are standard equipment in modern livestock farms and feed processing plants. Their main purpose is to prevent oxidation and spoilage, retain nutrients, and facilitate storage and transportation.
Parameters
| Straw Baler | Model | Feeding | Discharge | 1Cylinder Diameter | 2Cylinder Diameter | 3Cylinder Diameter | Power | Packed Size | Machine Size |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |||
| MJJ-2 | 1000 | 300*400 | 140 | 140 | —— | 22kw | 300*400*700 | 3600*2600*2000 | |
| MJJ-3M | 1200 | 300*400 | 180 | 210 | 210 | 37kw | 300*400*700 | 3800*2900*2600 | |
| MJJ-3L | 1500*1500 | 350*400 | 180 | 250 | 250 | 37kw | 350*400*700 | 6780*2400*4300 |
Key Components

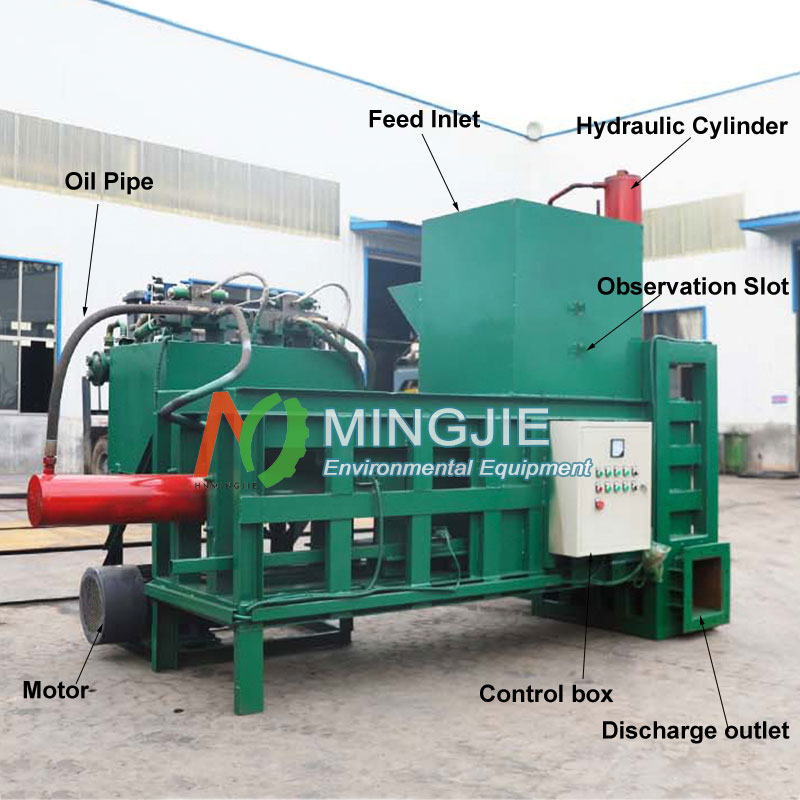

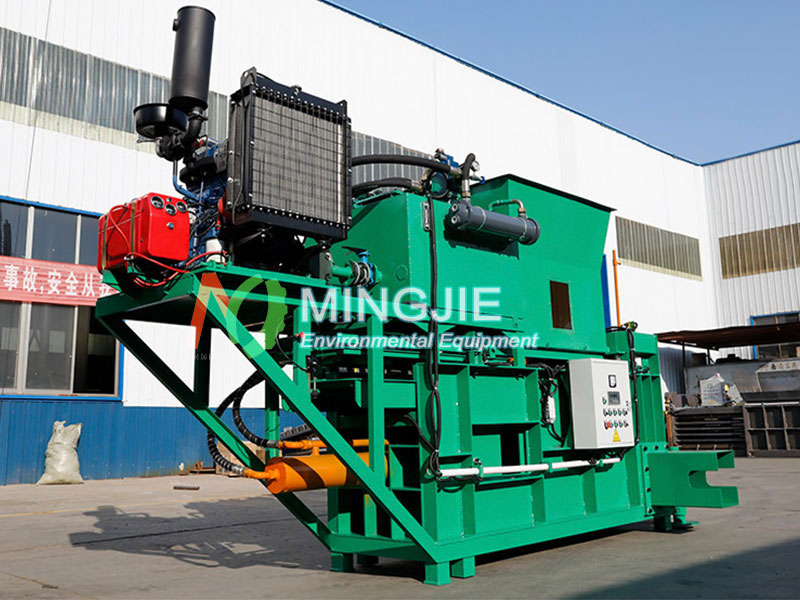

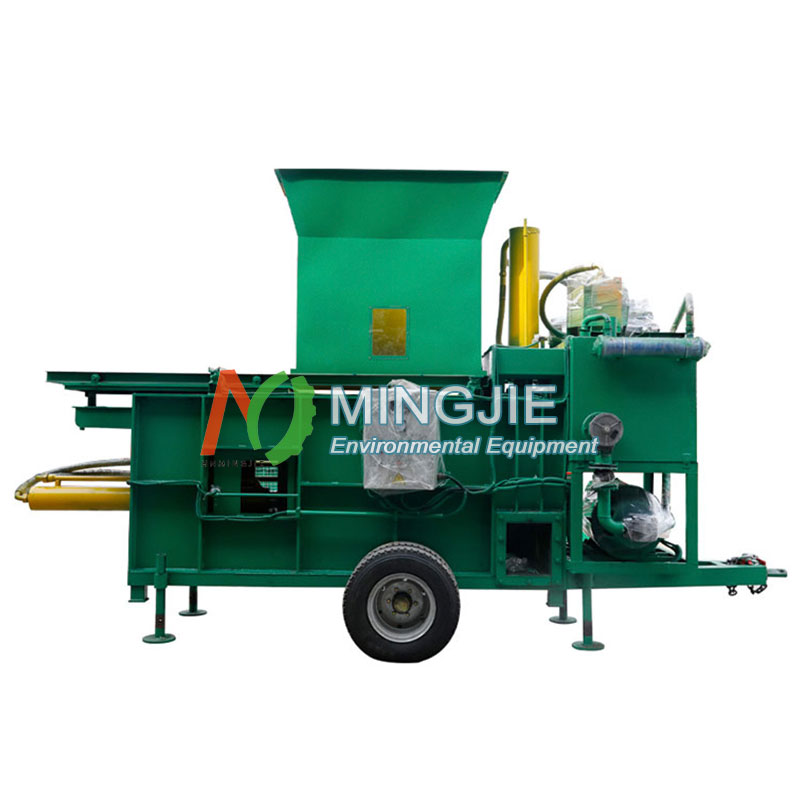

The silage baler mainly consists of a diesel engine, hydraulic system, storage system, compression mechanism, bagging mechanism, walking mechanism, and electrical system.

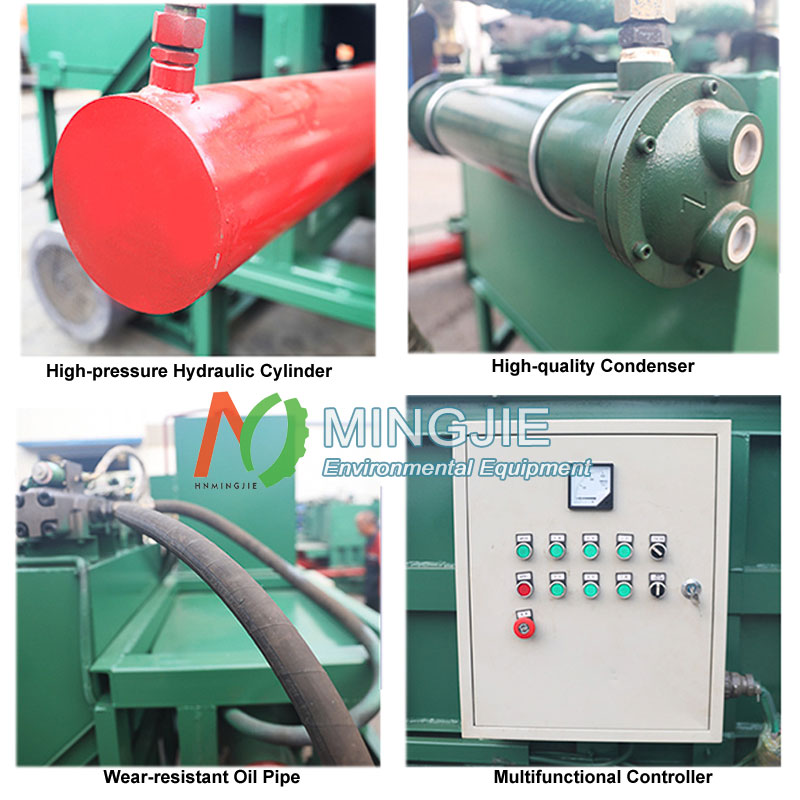

Hydraulic System
Provides the high-pressure power required for compression. It determines the baler’s compression density and working efficiency.
Compression Chamber
Defines the space for material compression. It ensures the bales are regularly shaped and have uniform density.
Bale/Wrapping Mechanism
Secures and seals the bales, crucial for anaerobic fermentation.
Feeding Device
Controls the material feeding speed and amount, ensuring a stable compression process.
Application
Silage Baling Process
01. Material Pre-treatment
Fresh straw, hay, and other raw materials are crushed to ensure uniformity and ease of compression.
02. Feeding and Compression

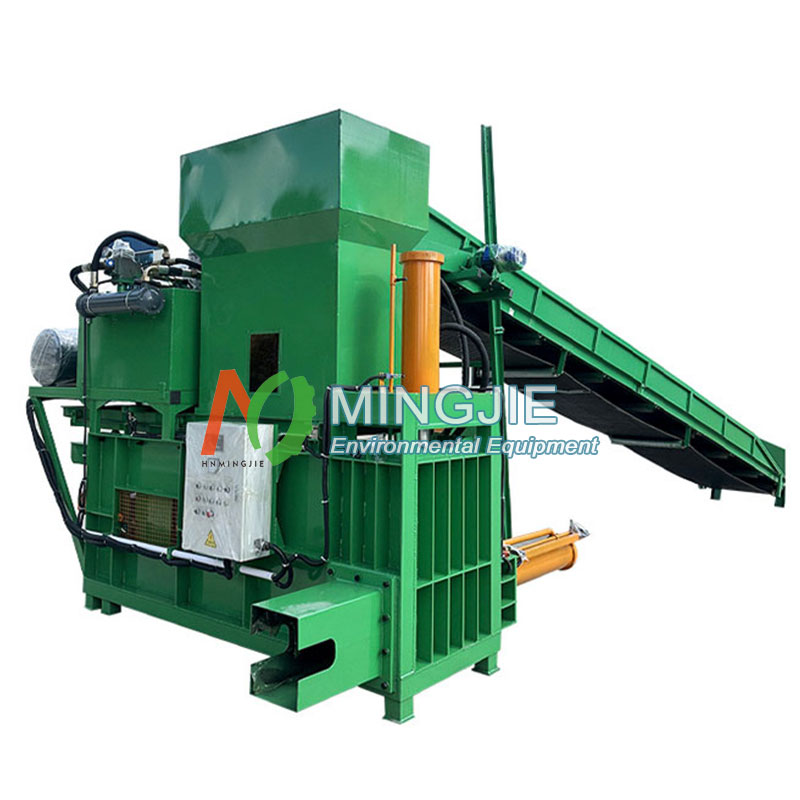

The material is fed into the compression chamber via a conveyor device. The hydraulic system drives the pressure head to apply high pressure, compressing the material into high-density bales.
03. Bale Binding and Sealing
After compression, the machine automatically binds and secures the bales with binding ropes.
04. Storage
The sealed bales are airtight, enabling long-term preservation and storage.
