Introduction

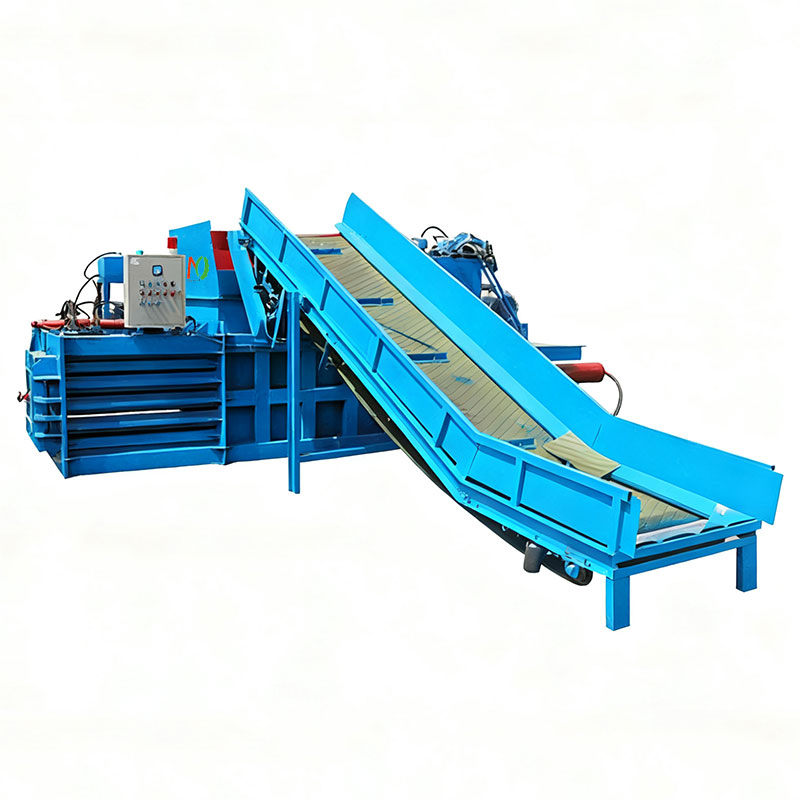

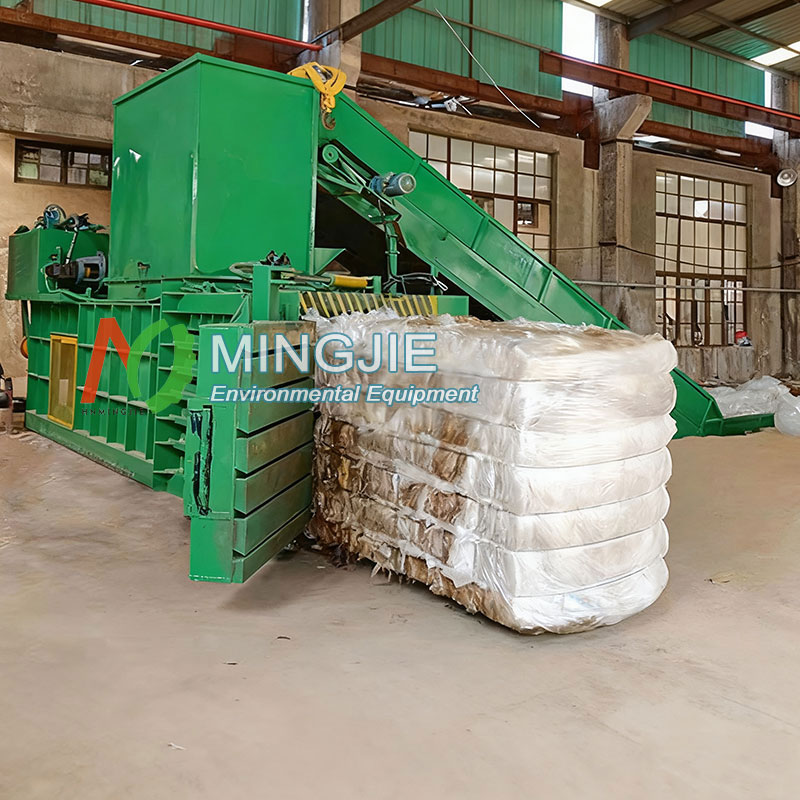

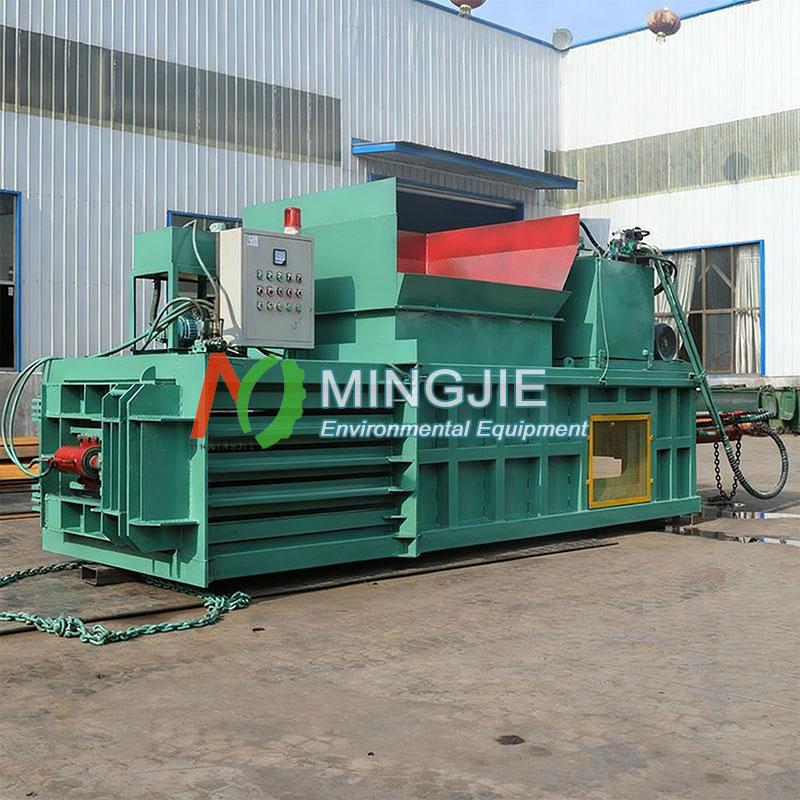

The horizontal packaging machine features a side-opening door. The large feeding opening facilitates large-volume feeding manually or via conveyor belt. When waste baling is complete, the bales are directly exposed after the door is opened, allowing for easy removal by forklift.
The horizontal packaging machine with slide opening uses a powerful hydraulic system to drive a piston, compressing loose materials into tight bales within a sealed chamber. This significantly reduces material volume, saving on transportation costs and storage space.
Parameters
| Horizontal Packing Machine with Side Opening | Model | Power | Packed Size(mm) | Machine Size(mm) | Oil Pump | Cylinder Diameter(mm) |
| MJHS-60T | 18.5kw | 1200*700*600 | 5200*1200*1700 | 80 | 185 | |
| MJHS-100T | 22kw | 1600*1100*800 | 6800*1800*2300 | 80 | 185 | |
| MJHS-120T | 22kw | 1600*1100*800 | 7000*1800*2300 | 80 | 230 | |
| MJHS-140T | 22kw | 1600*1100*800 | 7000*1800*2300 | 125 | 250 | |
| MJHS-160T | 37kw | 1800*1100*1250 | 9600*2300*3600 | Twin pump | 300 | |
| MJHS-200T | Double 37kw | 1800*1100*1250 | 9600*2300*3700 | Twin pump | 350 |

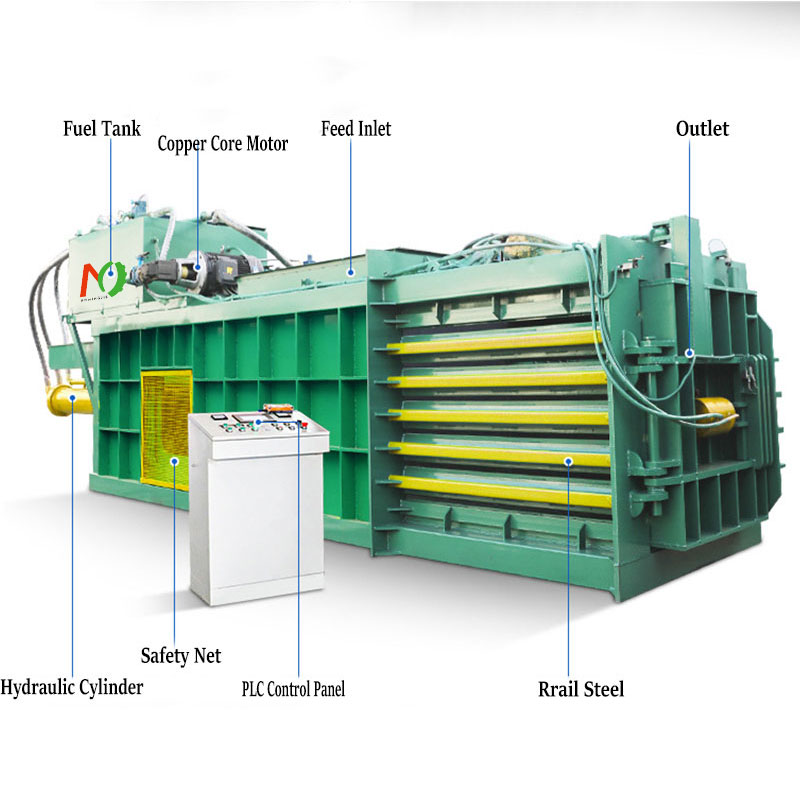

Core Components
01. Main Frame
A robust steel structure, forming the skeleton of the entire machine.
02. Compression Chamber (Box)
The space where materials are compressed and shaped.

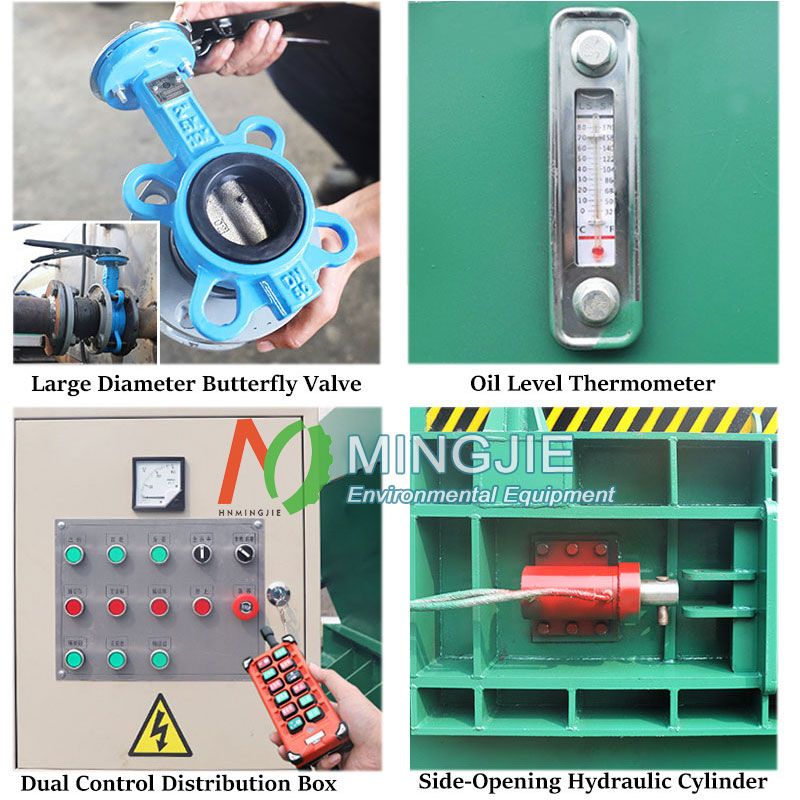

03. Side-Opening Door Mechanism
Typically consists of a heavy-duty steel door, hinges, and a hydraulic locking device to ensure the door does not open accidentally during compression.
04. Hydraulic System
Includes a motor, oil pump, hydraulic cylinders, control valves, and oil tank; it is the core component providing the compression power.
05. Pushing Piston (Pressure Head)
Driven by the main cylinder, this component directly compresses the material.
06. Electrical Control System
Includes a PLC control panel, buttons, sensors, etc., used to control the entire baling process.
07. Binding Mechanism
Can be manual or automatic threading and binding. Used to secure the compressed bales.
Applications
Side-opening horizontal balers are used to process various waste plastics, such as plastic bottles and plastic films. These plastics are irregularly shaped and large in volume, making them very difficult to process. Using a side-opening horizontal baler, they can be easily bagged into compact bales.
This not only improves the storage efficiency of plastics but also greatly facilitates subsequent processing. During processing, retrieving plastic bales is more convenient and faster, reducing time wasted on material handling and increasing production efficiency by approximately 35%.
Side-opening horizontal balers, with their high-efficiency baling speed, significantly improve the baling efficiency of waste paper recycling plants. Baling tasks that previously took a whole day can now be completed in just a few hours. Furthermore, because the density of the baled waste paper bales is greatly increased, the same transport vehicle can carry more waste paper, reducing transportation costs by approximately 40%.
